2B5V46 2-Groove 5V/A/B Series Split Taper Sheave
Regular price
$0.00
Couldn't load pickup availability

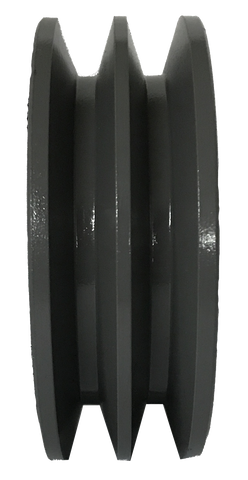

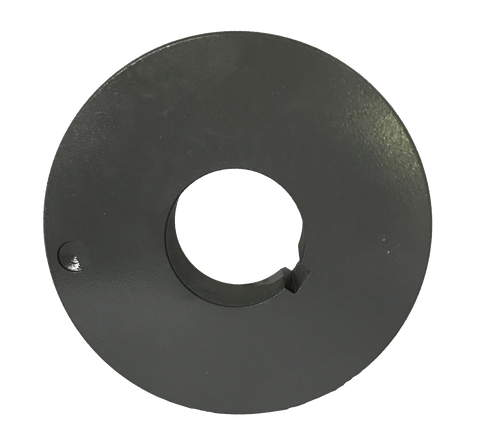

This 2-groove cast iron sheave fits 5V, A, and B Series belts and features a split taper bushing. All our sheaves are manufactured to meet all common industry standards.
Bore Type | Split Taper | Length Through Bore | 1.938” | Face Width | 1.719” |
Bushing Bore Range | 1/2 - 2 7/16'' | Pulley Construction | Plain | Application | 5V Double Wedge and A/B Classical Belt Drive |
Width | 2.484” | Material | Cast Iron | Number Of Grooves | 2 |
Outside Diameter | 4.880” | Bushing Series | B | Pitch Diameter | 4.2 (A) in, 4.6 (B) in, 4.7 (5V) in |
Keyway Size | 1/2 x 1/4 (1-13/16 to 2-1/4 Bore) in, 1/4 x 1/8 (15/16 to 1-1/4 Bore) in, 1/8 x 1/16 (1/2 to 9/16 Bore) in, 3/16 x 3/32 (5/8 to 7/8 Bore) in, 3/8 x 3/16 (1-7/16 to 1-3/4 Bore) in, 5/16 x 5/32 (1-5/16 to 1-3/8 Bore) in, 5/8 x 5/16 (2-5/16 to 2-11/16 Bore) |
