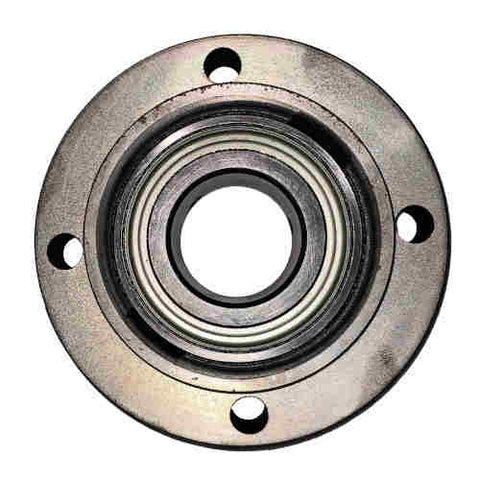

FC350X2
inner ring width: Narrow Inner Race
operating temperature range: 200°F
misalignment angle: 1-1/2 °
cage material: Nylon
compatible shaft diameter: 2.0000 in
finish/coating: Gray Paint
flange mounting type: 4-Hole Piloted Flange Cartridge
housing construction: Cast Iron
housing type: Flange Cartridge Bearing
lubricant: #2 Lithium
| Bore Diameter | 2.00 | Bore Type | Round | Max Rpm | 2500 rpm |
| Series | FC350 | Seal Type | Contact | Duty | Medium |
| Application | General Industrial | Locking Device | Set Screw | Insert Material | 52100 Bearing Steel |
| Insert Bearing Type | Setscrew Lock - Narrow Inner Race | Bearing Type | Four-Bolt Piloted | Material | Cast Iron |
| Mounting | Four-Bolt Piloted | Lubrication Type | Grease | Expansion Type | Non-Expansion Bearing (Fixed) |
| Bearing Style | Flange Cartridge |
