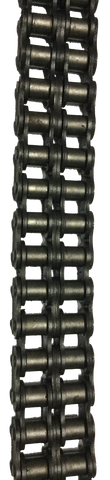

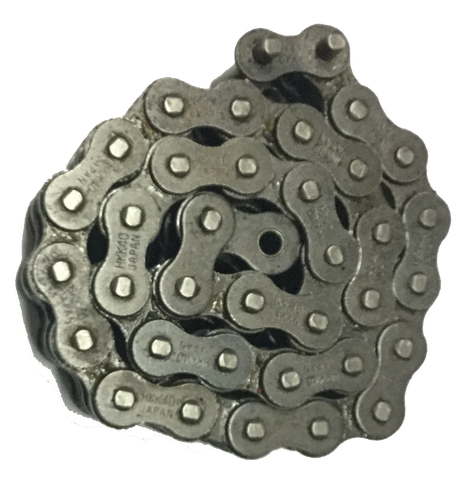

HKK 2-Strand #40 Standard Riveted Roller Chain (0.500" Pitch) - SOLD BY THE FOOT
Standard roller chain is the most common form of chain used in mechanical drive applications. This type of chain is used in a multitude of settings ranging from industrial, to agricultural, to automotive. Heat treatment, shot-peening, and pre-stretching of chain improves its strength and durability and ensures maximum longevity.
*Weight is pounds per foot; chain sold by the foot. You will get a free connecting link for every 10 feet purchased.
|Roller Width||0.313”||Plate Thickness 1||0.060”||Average Tensile Strength Lbs||8,600 LB|
|Maximum Allowable Load||1,370 LB||Construction||Riveted||Rivet End To Centerline||0.603”|
|Application||Industrial, Agricultural, Automotive drives||Pin Diameter||0.156”||Width||1.248”|
|Pitch||0.500”||Height||0.457”||Plate Thickness 2||0.060”|
|Connecting End To Centerline||0.645”||Transverse Pitch||0.567''||Diameter||0.312”|
