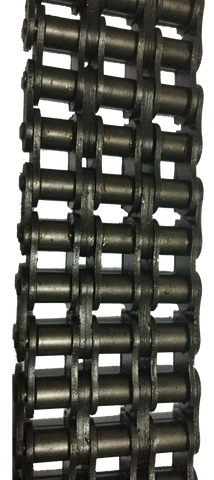

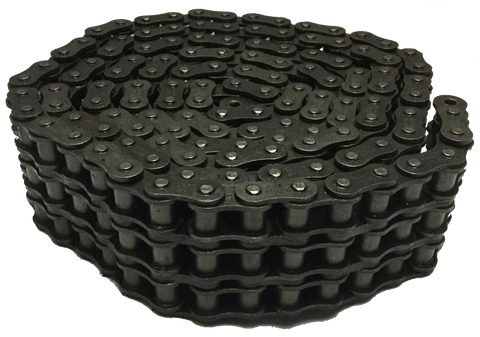

HKK 3-Strand #60 Standard Riveted Roller Chain (0.750" Pitch) - SOLD BY THE FOOT
Standard roller chain is the most common form of chain used in mechanical drive applications. This type of chain is used in a multitude of settings ranging from industrial, to agricultural, to automotive. Heat treatment, shot-peening, and pre-stretching of chain improves its strength and durability and ensures maximum longevity.
*Weight is pounds per foot; chain sold by the foot. You will get a free connecting link for every 10 feet purchased.
|Roller Width||0.500”||Plate Thickness 1||0.094”||Average Tensile Strength Lbs||30,000 LB|
|Maximum Allowable Load||4,875 LB||Construction||Riveted or Cottered||Rivet End To Centerline||1.386”|
|Application||Industrial, Agricultural, Automotive drives||Pin Diameter||0.234”||Width||2.843”|
|Pitch||0.750”||Height||0.689”||Plate Thickness 2||0.094”|
|Connecting End To Centerline||1.457”||Transverse Pitch||0.898''||Diameter||0.469”|
