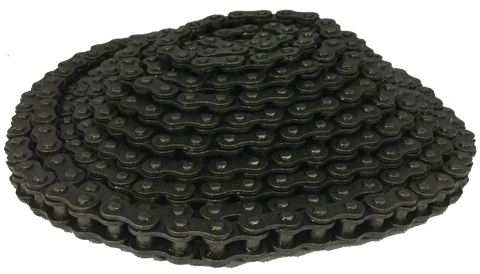

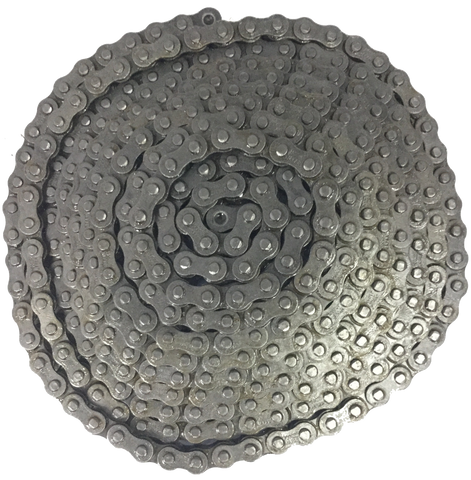

HKK #35 Standard Riveted Rollerless Chain (0.375" Pitch) - SOLD BY THE FOOT
This specific chain has no roller – diameter refers to bushing diameter.
Standard roller chain is the most common form of chain used in mechanical drive applications. This type of chain is used in a multitude of settings ranging from industrial, to agricultural, to automotive. Heat treatment, shot-peening, and pre-stretching of chain improves its strength and durability and ensures maximum longevity.
*Weight is pounds per foot; chain sold by the foot. You will get a free connecting link for every 10 feet purchased.
|Roller Width||0.188”||Plate Thickness 1||0.050”||Average Tensile Strength Lbs||2,400 LB|
|Maximum Allowable Load||560 LB||Construction||Riveted||Rivet End To Centerline||0.233”|
|Application||Industrial, Agricultural, Automotive drives||Pin Diameter||0.141”||Width||0.500”|
|Pitch||0.375”||Height||0.347”||Plate Thickness 2||0.050”|
|Connecting End To Centerline||0.267”||Diameter||0.200”|
