6015X 15-Tooth, 60 Standard Roller Chain X-Series Sprocket (3/4" Pitch)

Only 1 left
SKU: 6015X
$7.84

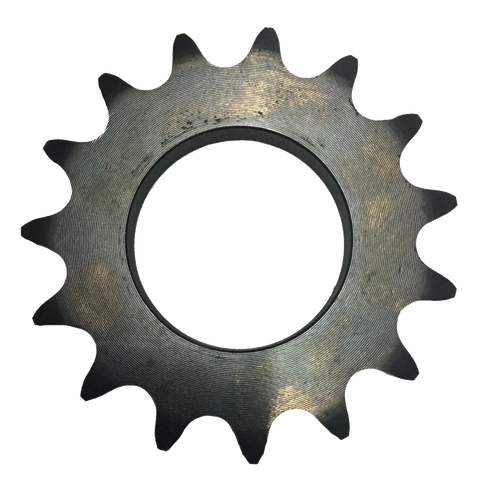

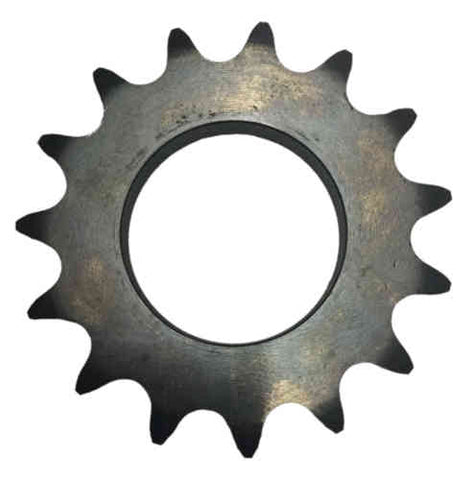

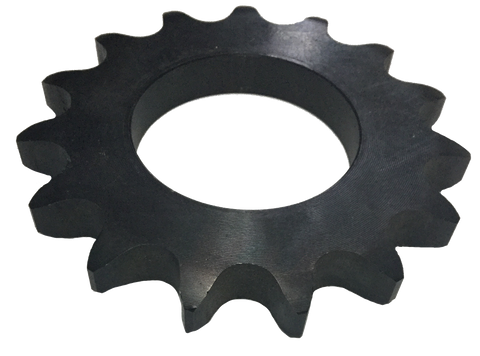

This 15-Tooth sprocket fits #60 standard roller chain and features an X-Series hub.

Bore Diameter 2” Construction X-Series Hub Bore Type 0
Bushing Bore Range 0 Application Power transmission in mechanical drive applications (conveying, lifting, industrial machinery, forestry, etc.) Chain Number 60
Pitch 3/4'' Number Of Strands 1 Material Steel
Outside Diameter 4'' Pitch Diameter 3.607'' Number Of Teeth 15
