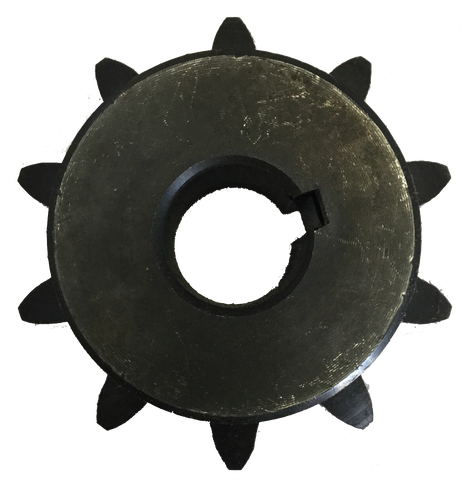

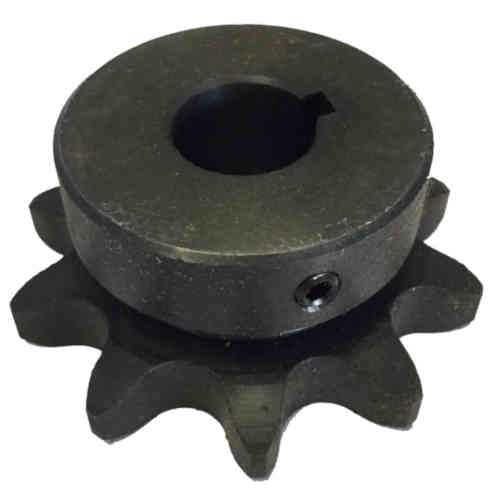

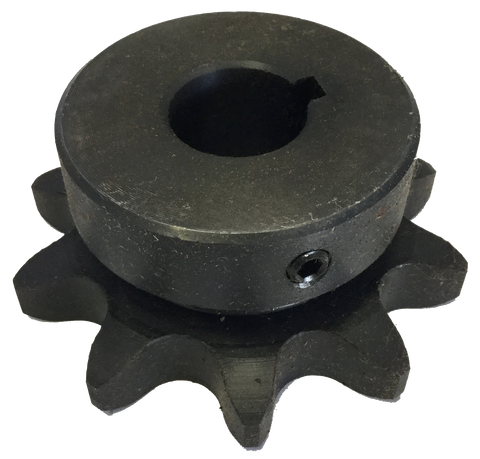

H8010X1 10-Tooth, 80 Standard Roller Chain Finished Bore Sprocket (1" Pitch, 1" Bore)

Out of stock
$16.64

This Type B, minimum bore sprocket drives #80 standard roller chain and comes stock with a 1” finished bore. All of our sprockets are manufactured with hardened steel teeth to improve overall strength and prevent wear and tear on both the sprocket and the chain.

Application Power transmission in mechanical drive applications (conveying, lifting, industrial machinery, forestry, etc.)
Pitch 1
Bore Diameter 1/2”
Number Of Strands 1
Construction Type B Minimum Bore
Material Steel
Bore Type Finished Bore
Outside Diameter 3.68
Length Through Bore 1 5/8
Pitch Diameter 3.236
Number Of Teeth 10
Chain Number 80
