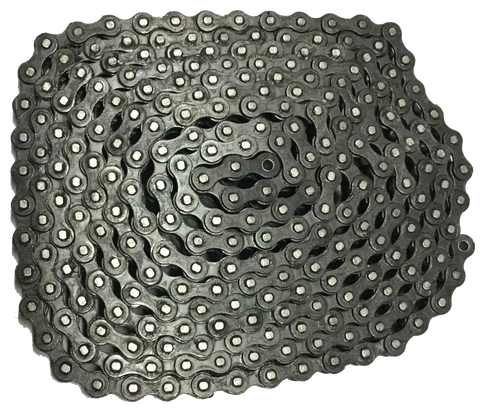

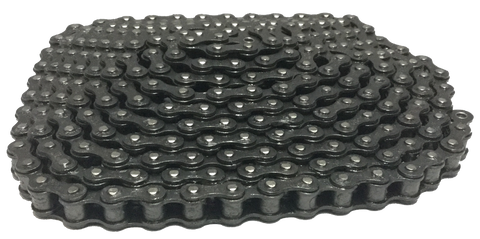

HKK #41 Standard Riveted Split Bushing Roller Chain (0.500" Pitch) - SOLD BY THE FOOT
This specific chain has no roller – diameter refers to bushing diameter.
Standard roller chain is the most common form of chain used in mechanical drive applications. This type of chain is used in a multitude of settings ranging from industrial, to agricultural, to automotive. Heat treatment, shot-peening, and pre-stretching of chain improves its strength and durability and ensures maximum longevity.
*Weight is pounds per foot; chain sold by the foot . You will get a free connecting link for every 10 feet purchased.
|Roller Width||0.250”||Plate Thickness 1||0.050”||Average Tensile Strength Lbs||2,600 LB|
|Maximum Allowable Load||500 LB||Construction||Riveted||Rivet End To Centerline||0.266”|
|Application||Industrial, Agricultural, Automotive drives||Pin Diameter||0.141”||Width||0.578”|
|Pitch||0.500”||Height||0.386”||Plate Thickness 2||0.050”|
|Connecting End To Centerline||0.312”||Diameter||0.306”|
