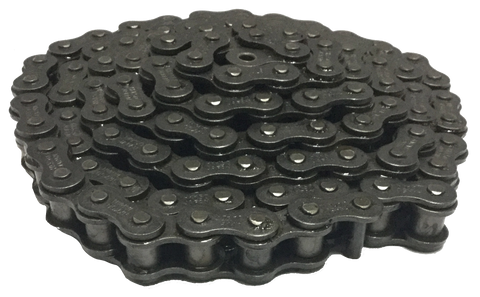

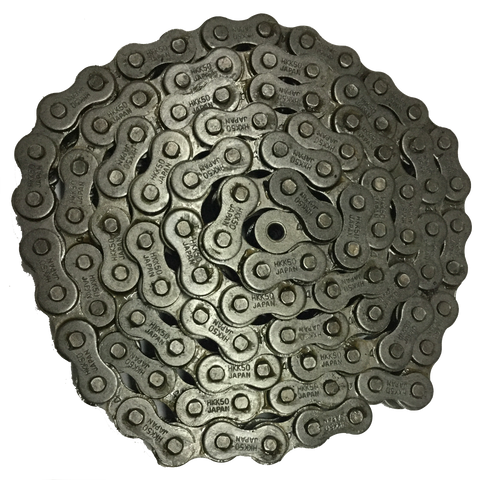

HKK #50 Standard Riveted Roller Chain (0.625" Pitch) - SOLD BY THE FOOT
Standard roller chain is the most common form of chain used in mechanical drive applications. This type of chain is used in a multitude of settings ranging from industrial, to agricultural, to automotive. Heat treatment, shot-peening, and pre-stretching of chain improves its strength and durability and ensures maximum longevity.
*Weight is pounds per foot; chain sold by the foot. You will get a free connecting link for every 10 feet purchased.
|Roller Width||0.375”||Plate Thickness 1||0.080”||Average Tensile Strength Lbs||7,200 LB|
|Maximum Allowable Load||1,620 LB||Construction||Riveted||Rivet End To Centerline||0.400”|
|Application||Industrial, Agricultural, Automotive drives||Pin Diameter||0.200”||Width||0.845”|
|Pitch||0.625”||Height||0.571”||Plate Thickness 2||0.080”|
|Connecting End To Centerline||0.445”||Diameter||0.400”|
