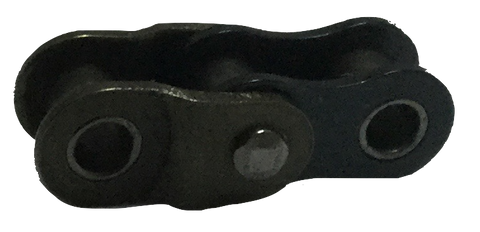

05B British Standard Chain Offset Link 0.315" Pitch

In stock - 23 items available
$3.15

Offset links, or half links, are used when a chain needs to be extended/shortened by only half the length of the normal pitch. These links feature cotterpins to seamlessly connect to original chain.

British standard chain, like standard roller chain, is a common form of chain used in mechanical drive applications. This type of chain is used in a multitude of settings ranging from industrial, to agricultural, to automotive. Heat treatment, shot-peening, and pre-stretching of chain improves its strength and durability and ensures maximum longevity.

Roller Width 0.118” Plate Thickness 1 0.030” Average Tensile Strength Lbs 1,100 LB
Maximum Allowable Load 275 LB Construction Cottered Rivet End To Centerline 0.150”
Application Extend/reduce chain length by 1/2 pitch. Pin Diameter 0.091” Pitch 0.315”
Height 0.280” Plate Thickness 2 0.030” Connecting End To Centerline 0.185”
Diameter 0.197”
