06B British Standard Chain Connecting Link (3/8" Pitch) - Froedge Machine & Supply Co., Inc.

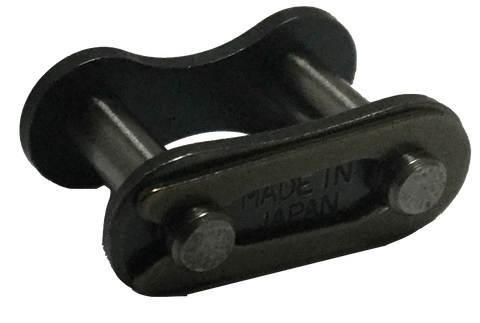

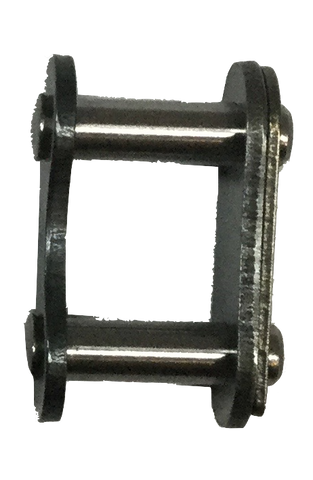

06B British Standard Chain Connecting Link (3/8" Pitch)

British standard chain, like standard roller chain, is a common form of chain used in mechanical drive applications. This type of chain is used in a multitude of settings ranging from industrial, to agricultural, to automotive. Heat treatment, shot-peening, and pre-stretching of chain improves its strength and durability and ensures maximum longevity.

Roller Width 0.225” Plate Thickness 1 0.039” Average Tensile Strength Lbs 2,300 LB
Maximum Allowable Load 380 LB Construction Riveted Rivet End To Centerline 0.240”
Application Industrial, Agricultural, Automotive drives Pin Diameter 0.129” Pitch 0.375”
Height 0.457” Plate Thickness 2 0.049” Connecting End To Centerline 0.276”
Diameter 0.250”
