06B British Standard Chain Offset Link (3/8" Pitch)

  • $1.92

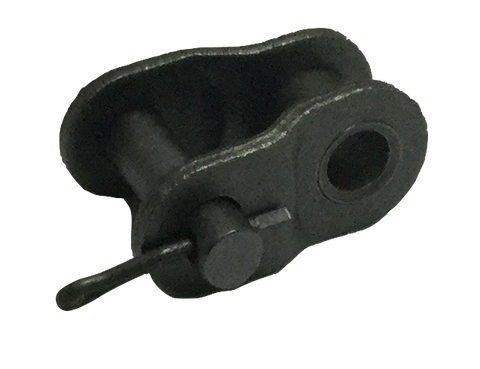

Offset links, or half links, are used when a chain needs to be extended/shortened by only half the length of the normal pitch. These links feature cotterpins to seamlessly connect to original chain.

British standard chain, like standard roller chain, is a common form of chain used in mechanical drive applications. This type of chain is used in a multitude of settings ranging from industrial, to agricultural, to automotive. Heat treatment, shot-peening, and pre-stretching of chain improves its strength and durability and ensures maximum longevity.

Roller Width 0.225” Plate Thickness 1 0.039” Average Tensile Strength Lbs 2,300 LB
Maximum Allowable Load 380 LB Construction Cottered Rivet End To Centerline 0.240”
Application Extend/reduce chain length by 1/2 pitch. Pin Diameter 0.129” Pitch 0.375”
Height 0.457” Plate Thickness 2 0.049” Connecting End To Centerline 0.276”
Diameter 0.250”
