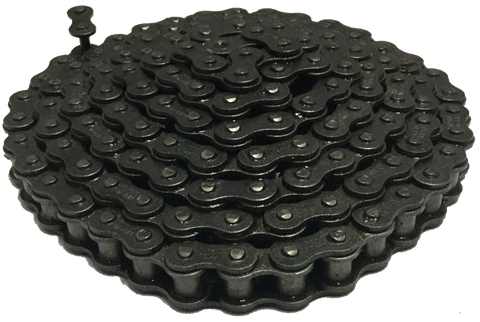

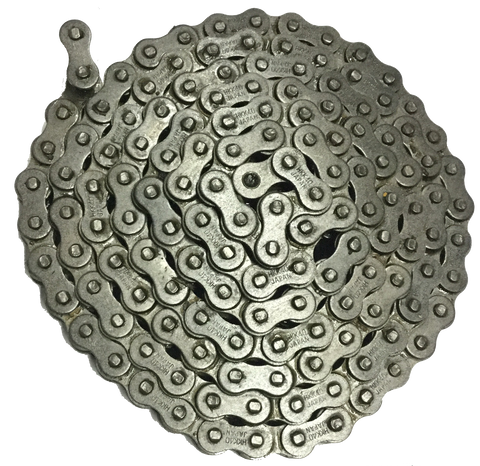

08B British Standard Chain (1/2" Pitch)
British standard chain, like standard roller chain, is a common form of chain used in mechanical drive applications. This type of chain is used in a multitude of settings ranging from industrial, to agricultural, to automotive. Heat treatment, shot-peening, and pre-stretching of chain improves its strength and durability and ensures maximum longevity.
*Weight is pounds per foot; chain sold by the foot.
Roller Width | 0.305” | Plate Thickness 1 | 0.058” | Average Tensile Strength Lbs | 4,080 LB |
Construction | Riveted | Rivet End To Centerline | 0.329” | Application | Industrial, Agricultural, Automotive drives |
Pin Diameter | 0.175” | Width | 0.682” | Pitch | 0.500” |
Height | 0.465” | Plate Thickness 2 | 0.058” | Connecting End To Centerline | 0.363” |
Diameter | 0.335” |
