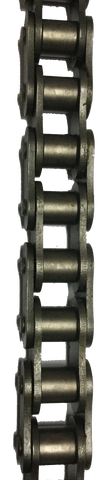

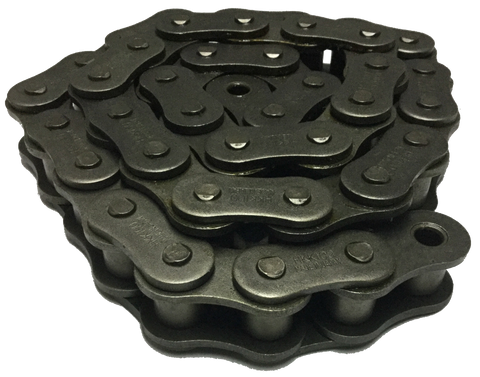

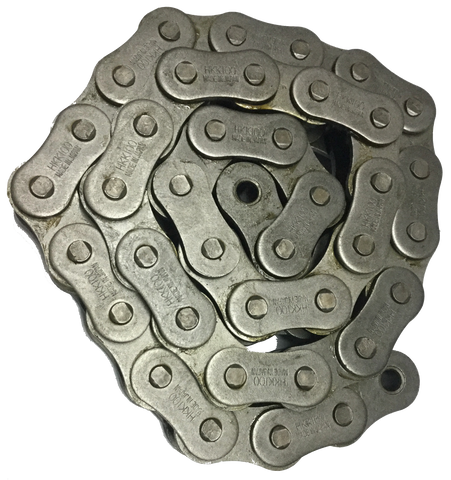

HKK #100 Standard Riveted Roller Chain (1.250" Pitch) - SOLD BY THE FOOT
Standard roller chain is the most common form of chain used in mechanical drive applications. This type of chain is used in a multitude of settings ranging from industrial, to agricultural, to automotive. Heat treatment, shot-peening, and pre-stretching of chain improves its strength and durability and ensures maximum longevity.
*Weight is pounds per foot; chain sold by the foot. You will get a free connecting link for every 10 feet purchased.
|Roller Width||0.750”||Plate Thickness 1||0.156”||Average Tensile Strength Lbs||26,200 LB|
|Maximum Allowable Load||6,600 LB||Construction||Riveted or Cottered||Rivet End To Centerline||0.772”|
|Application||Industrial, Agricultural, Automotive drives||Pin Diameter||0.375”||Width||1.685”|
|Pitch||1.250”||Height||1.154”||Plate Thickness 2||0.156”|
|Connecting End To Centerline||0.913”||Diameter||0.750”|
