Home » 100A48 48-Tooth, 100 Standard Roller Chain Type A Sprocket (1 1/4" Pitch)
100A48 48-Tooth, 100 Standard Roller Chain Type A Sprocket (1 1/4" Pitch) - Froedge Machine & Supply Co., Inc.
100A48 48-Tooth, 100 Standard Roller Chain Type A Sprocket (1 1/4" Pitch) - Froedge Machine & Supply Co., Inc.
Froedge Machine & Supply Co., Inc.

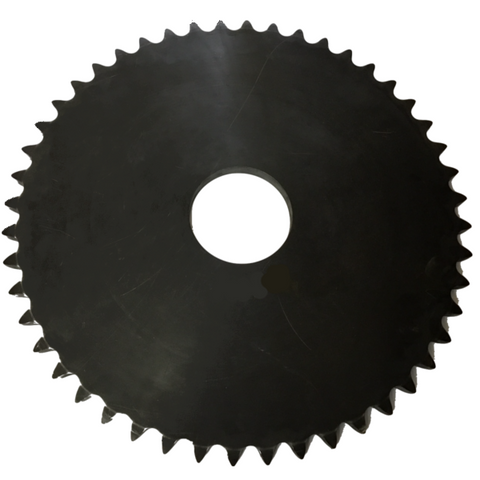

100A48 48-Tooth, 100 Standard Roller Chain Type A Sprocket (1 1/4" Pitch)

Out of stock
$211.52

This Type A, steel plate sprocket drives #100 standard roller chain. All of our sprockets are manufactured with hardened steel teeth to improve overall strength and prevent wear and tear on both the sprocket and the chain. CUSTOM BORING AVAILABLE - CALL 1-888-868-5891

Bore Diameter 1” Construction Type A Steel Plate Bore Type Rough Stock Bore
Bushing Bore Range 1 - 17.78'' Application Power transmission in mechanical drive applications (conveying, lifting, industrial machinery, forestry, etc.) Chain Number 100
Pitch 1 1/4'' Number Of Strands 1 Material Steel
Outside Diameter 19.82'' Pitch Diameter 19.112'' Number Of Teeth 48
Thickness 0.692''
