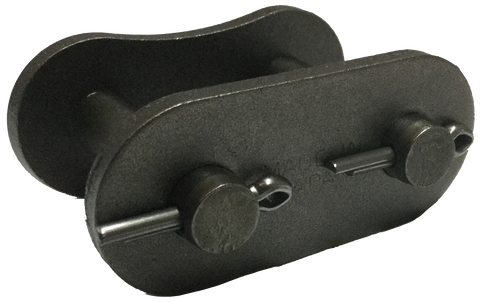

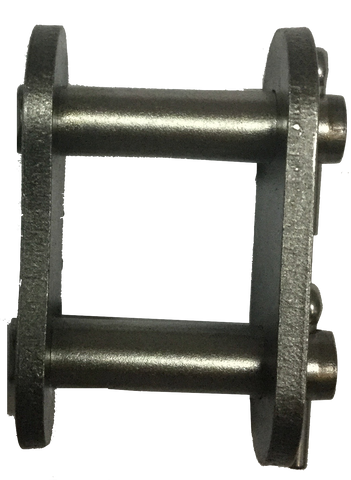

100CL-K1B2 100 ANSI Standard Roller Chain Connecting Link w/ K1 Attachment 1 1/4" Pitch
This connecting link comes with attachment K1B2. Standard roller chain is the most common form of chain used in mechanical drive applications. This type of chain is used in a multitude of settings ranging from industrial, to agricultural, to automotive. Heat treatment, shot-peening, and pre-stretching of chain improves its strength and durability and ensures maximum longevity.
Roller Width | 0.750” | Plate Thickness 1 | 0.156” | Average Tensile Strength Lbs | 26,200 LB |
Maximum Allowable Load | 6,360 LB | Construction | Riveted or Cottered | Rivet End To Centerline | 0.772” |
Tab Width | 1'' | Height Pin To Tab | 0.781'' | Height Centerline To Tab | 1.742'' |
Application | Industrial, Agricultural, Automotive drives | Pin Diameter | 0.375” | Pitch | 1.250” |
Height | 1.154” | Plate Thickness 2 | 0.156” | Connecting End To Centerline | 0.913” |
Height Centerline To Hole | 1.25'' | Hole Diameter | 0.346'' | Diameter | 0.750” |
