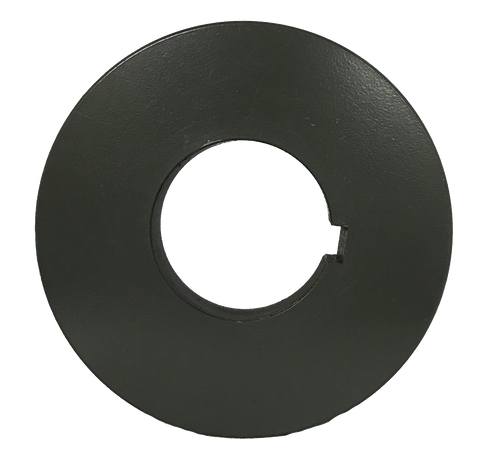

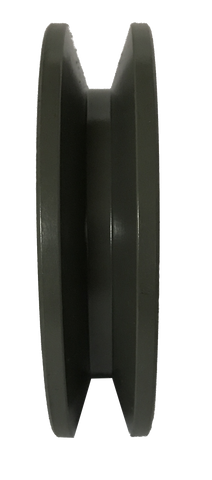

11820 3-Groove A/B Series Taper-Lock Sheave

Out of stock
SKU: 118230
$0.00

This 3-groove cast iron sheave fits A and B Series belts and features a taper lock bushing. All our sheaves are manufactured to meet all common industry standards.

Bore Type Taper Locking Length Through Bore 1.000” Face Width 2.500”
Bushing Bore Range 1/2 - 1 1/4'' Pulley Construction Plain Application Classical A/B Triple Belt Drive
Width 2.500” Material Cast Iron Number Of Grooves 3
Outside Diameter 3.950” Bushing Series 1210 Pitch Diameter 3.58 (A), 3.96 (B)
Keyway Size 1/4 x 1/8 (15/16 to 1-1/4 Bore) in, 1/8 x 1/16 (1/2 to 9/16 Bore) in, 3/16 x 3/32 (5/8 to 7/8 Bore) in
