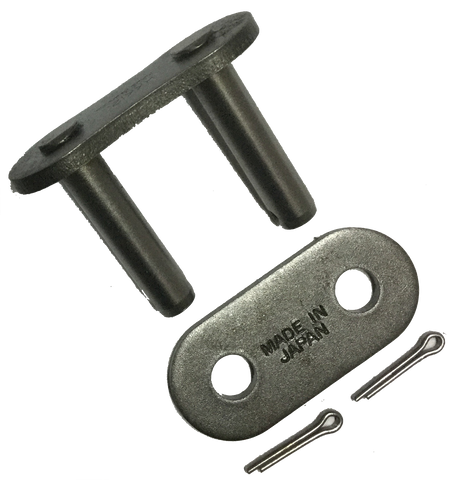

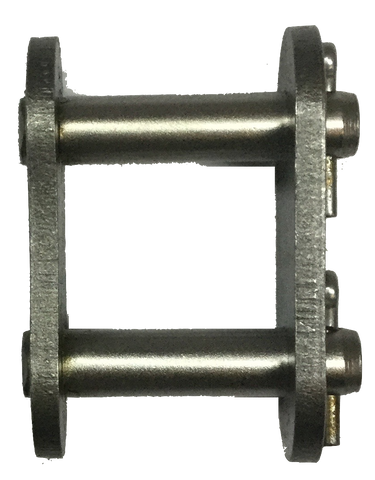

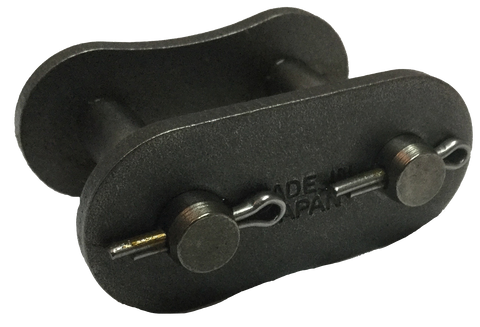

HKK#120 Standard Roller Chain Connecting Link (1 1/2" Pitch)
Standard roller chain is the most common form of chain used in mechanical drive applications. This type of chain is used in a multitude of settings ranging from industrial, to agricultural, to automotive. Heat treatment, shot-peening, and pre-stretching of chain improves its strength and durability and ensures maximum longevity.
| Roller Width | 1.000” | Plate Thickness 1 | 0.187” | Average Tensile Strength Lbs | 37,700 LB |
| Maximum Allowable Load | 8,540 LB | Construction | Riveted or Cottered | Rivet End To Centerline | 0.971” |
| Application | Industrial, Agricultural, Automotive drives | Pin Diameter | 0.437” | Pitch | 1.500” |
| Height | 1.382” | Plate Thickness 2 | 0.187” | Connecting End To Centerline | 1.124” |
| Diameter | 0.875” |
