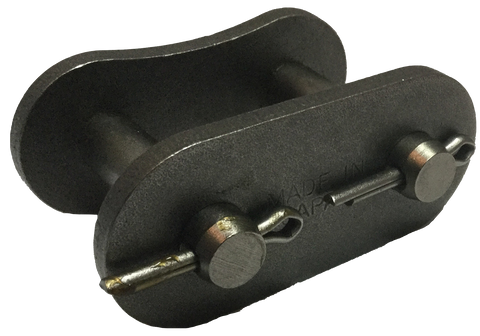

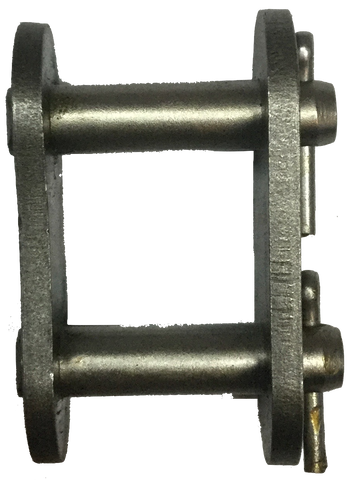

HKK #140 Standard Roller Chain Connecting Link (1 3/4" Pitch)
Standard roller chain is the most common form of chain used in mechanical drive applications. This type of chain is used in a multitude of settings ranging from industrial, to agricultural, to automotive. Heat treatment, shot-peening, and pre-stretching of chain improves its strength and durability and ensures maximum longevity.
|Roller Width||1.000”||Plate Thickness 1||0.219”||Average Tensile Strength Lbs||48,800 LB|
|Maximum Allowable Load||11,340 LB||Construction||Riveted or Cottered||Rivet End To Centerline||1.060”|
|Application||Industrial, Agricultural, Automotive drives||Pin Diameter||0.500”||Pitch||1.750”|
|Height||1.610”||Plate Thickness 2||0.219”||Connecting End To Centerline||1.228”|
