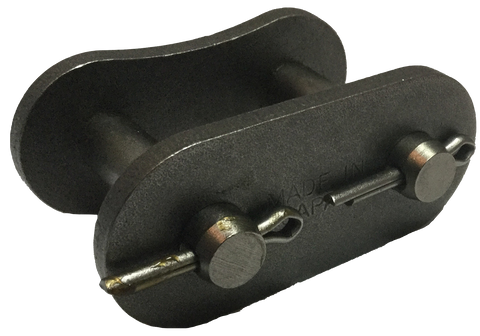

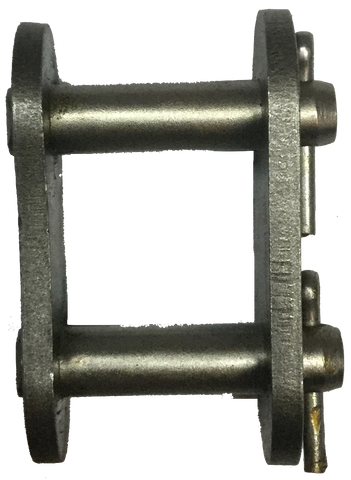

#140 Standard Roller Chain Connecting Link w/ SK1 Attachment 1 3/4" Pitch

In stock - 6 items available
$59.60
 More payment options

This connecting link comes with attachment SK1. Standard roller chain is the most common form of chain used in mechanical drive applications. This type of chain is used in a multitude of settings ranging from industrial, to agricultural, to automotive. Heat treatment, shot-peening, and pre-stretching of chain improves its strength and durability and ensures maximum longevity.

Application Industrial, Agricultural, Automotive drives
Pitch 1.750”
Roller Width 1.000”
Height 1.610”
Plate Thickness 1 0.219”
Plate Thickness 2 0.219”
Average Tensile Strength 48,800 LB
Maximum Allowable Load 11,340 LB
Construction Riveted or Cottered
Rivet End To Centerline 1.060”
Connecting End To Centerline 1.228”
Tab Width 1.375
Height Pin To Tab 2.484
Height Centerline To Hole 1.75
Hole Diameter 0.472
Pin Diameter 0.500”
