1P3V106 1-Groove 3V Series Split Taper Sheave

Only 2 left
Barcode: 662289110063
$119.70

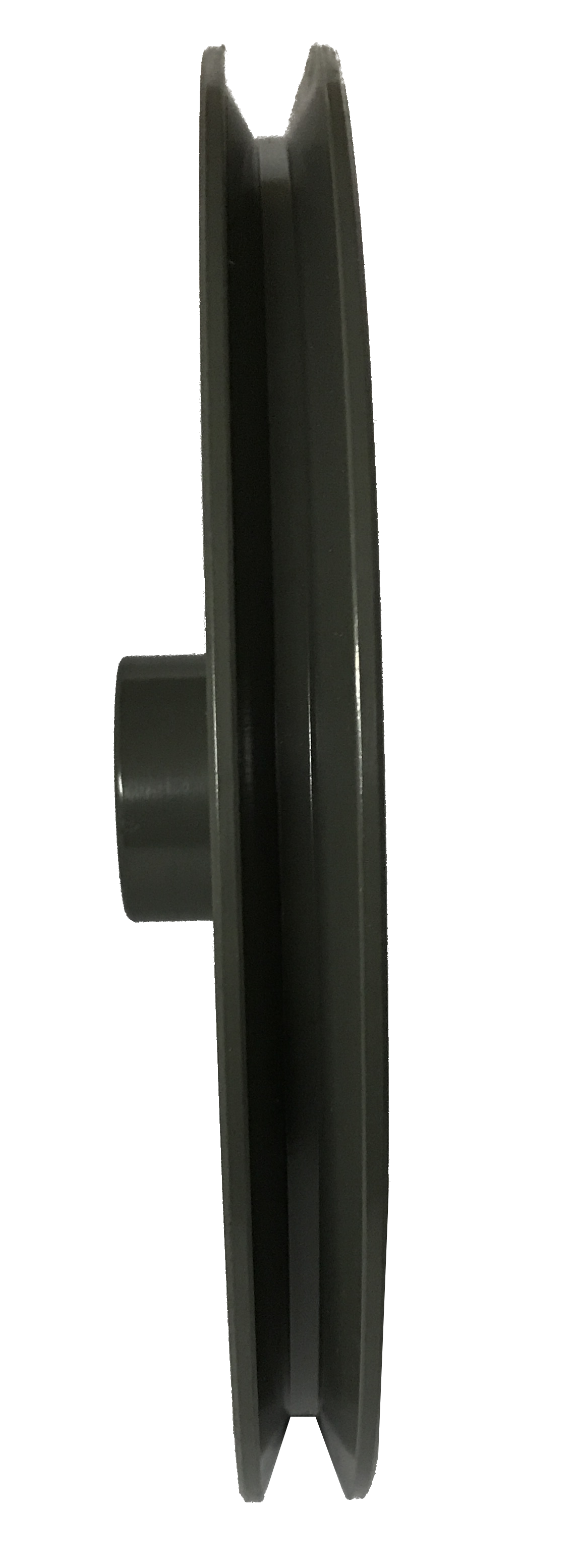

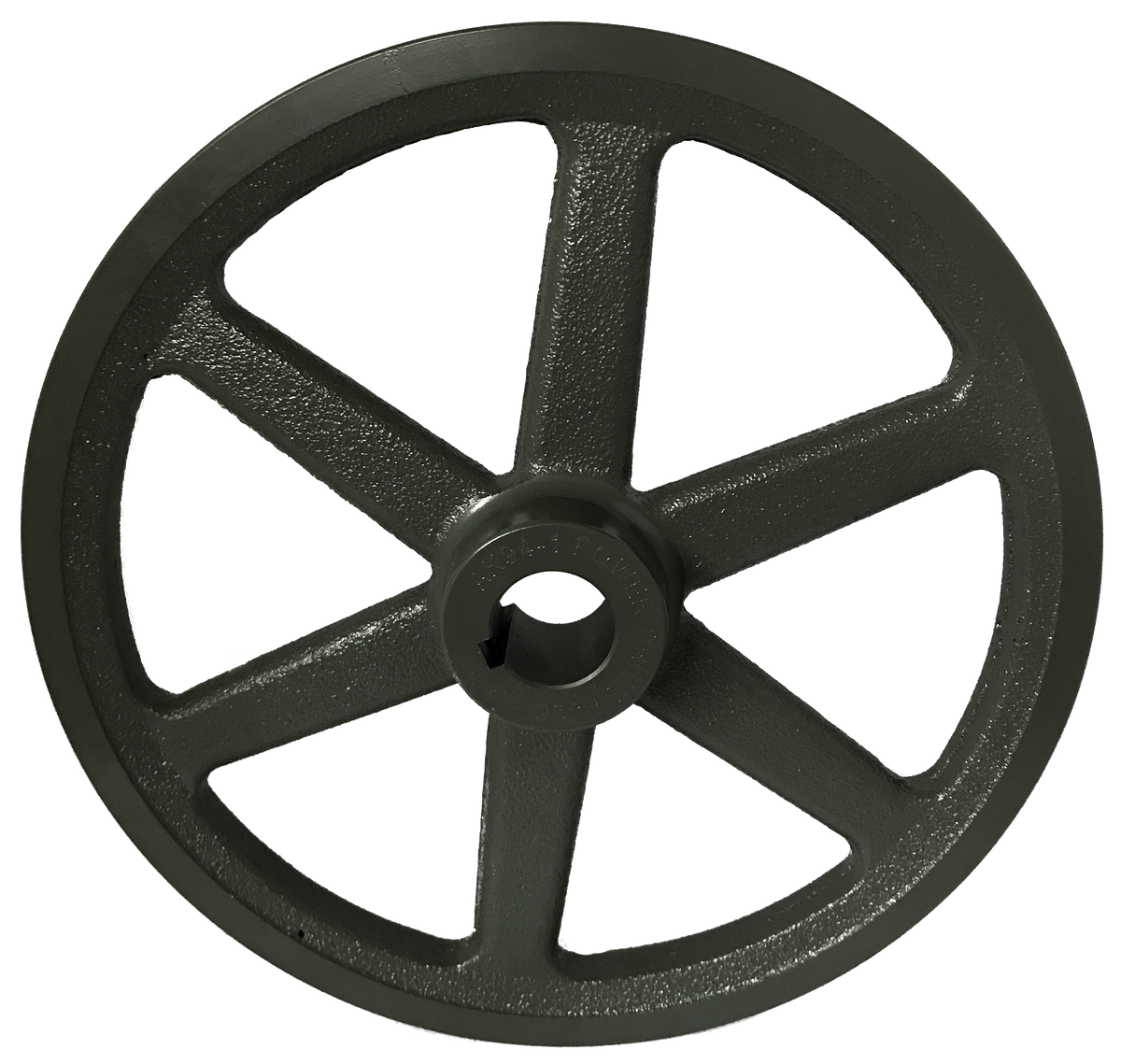

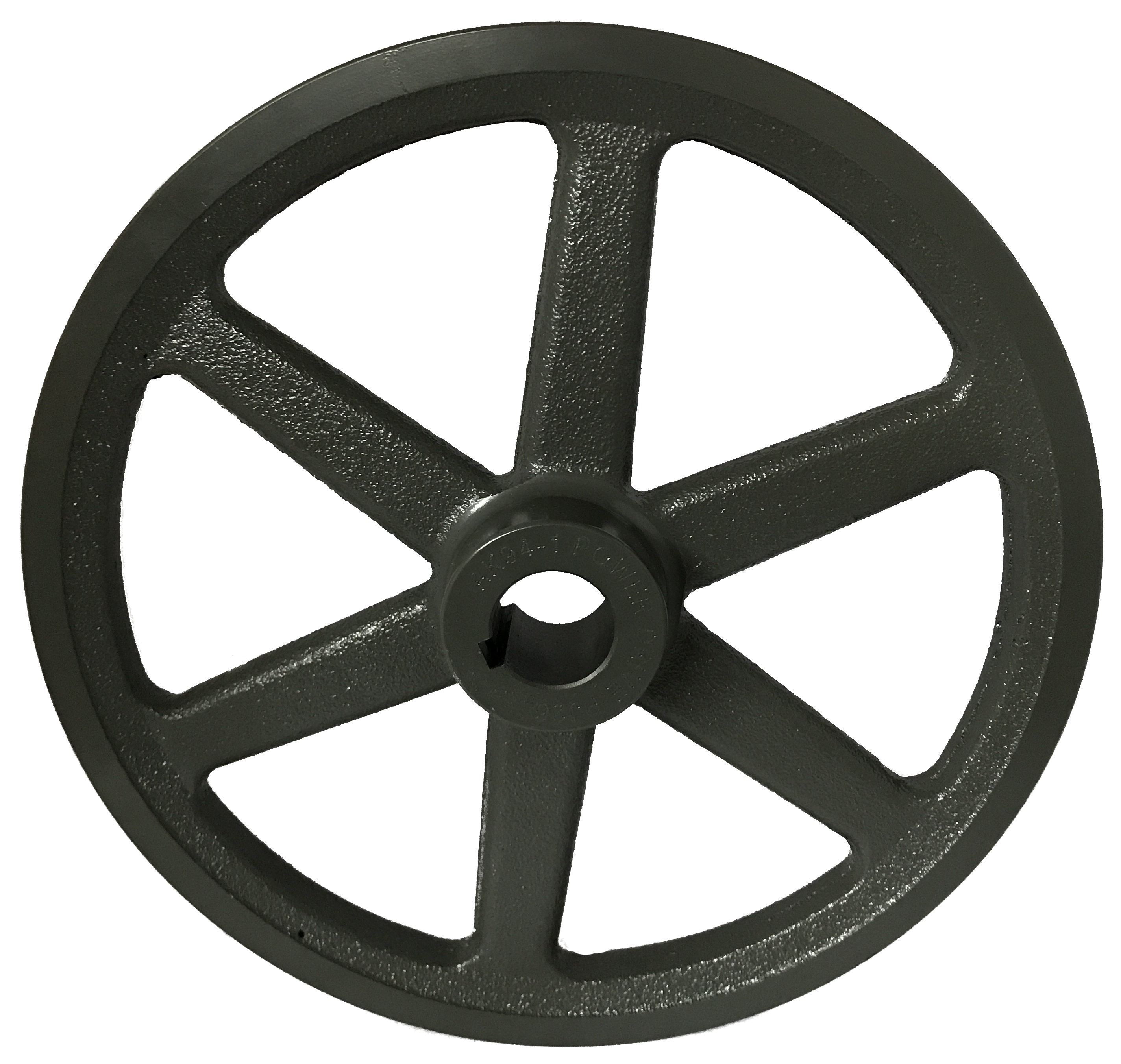

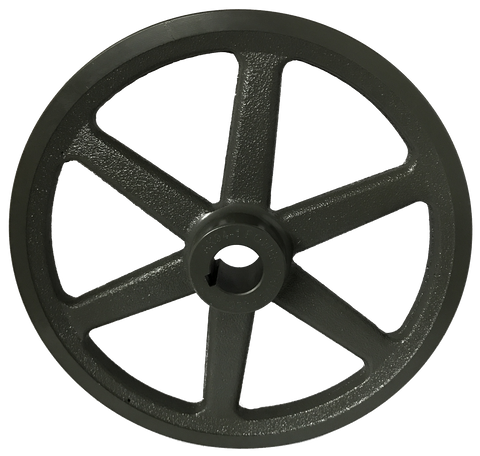

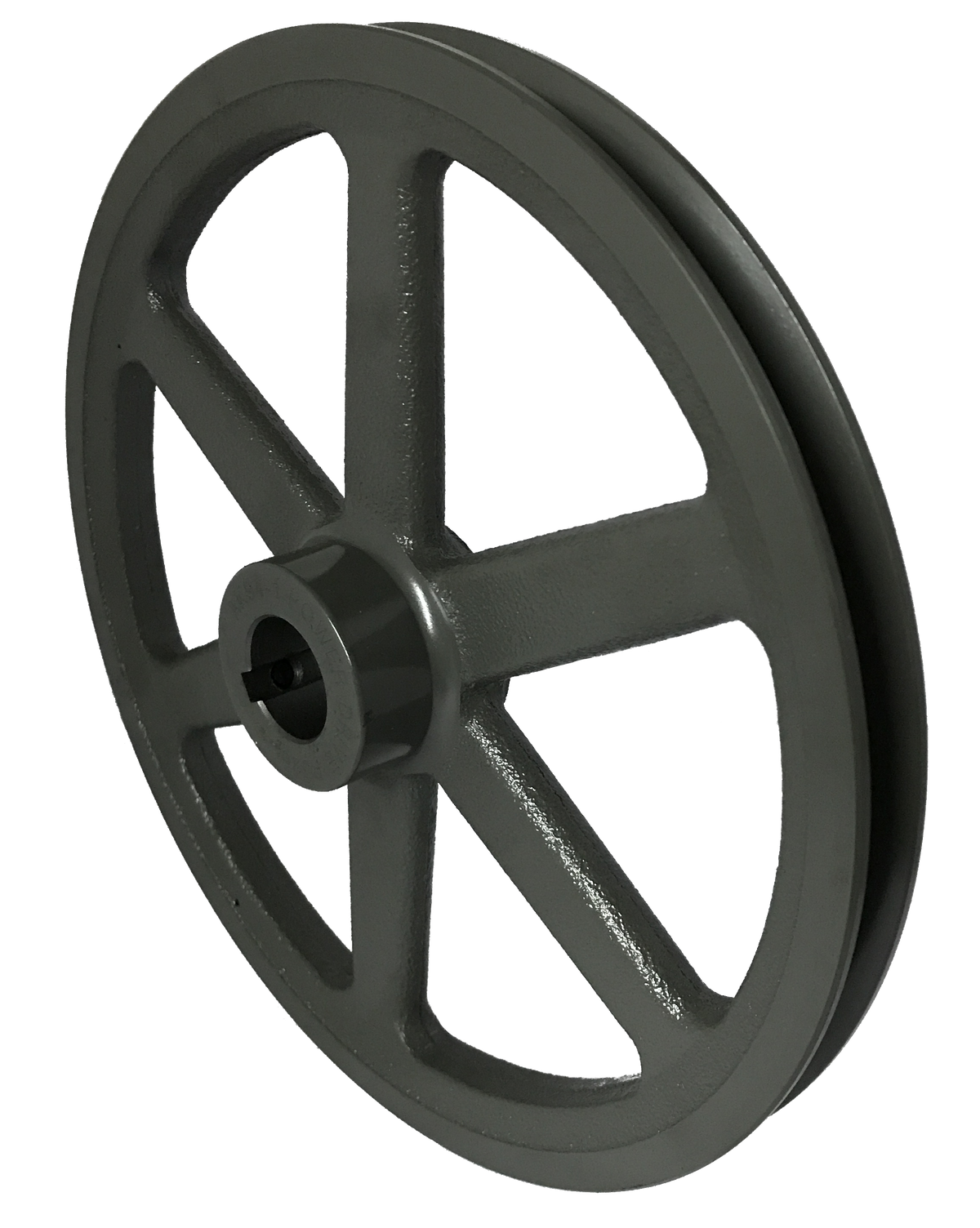

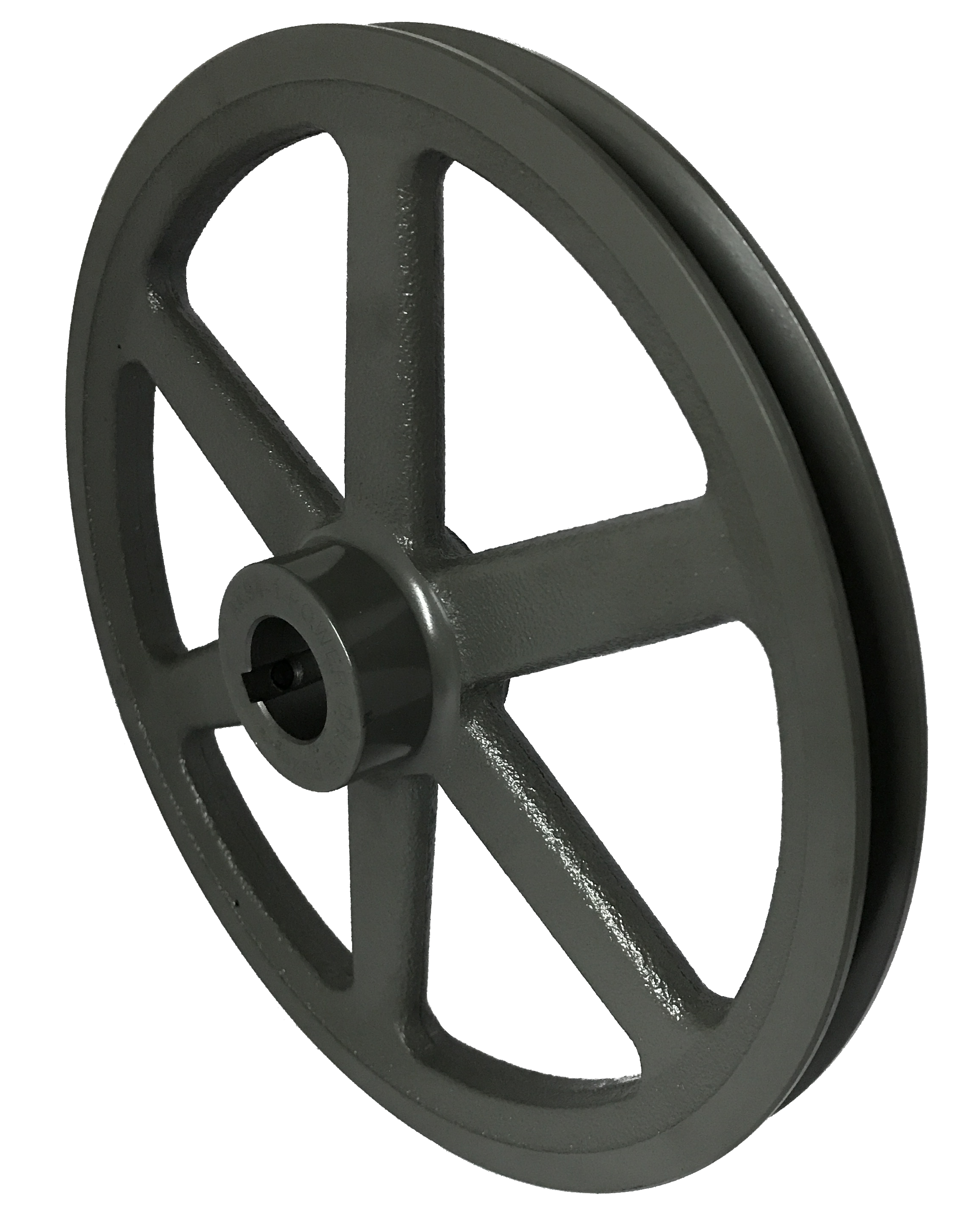

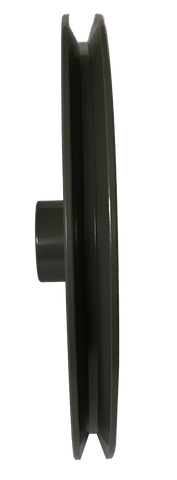

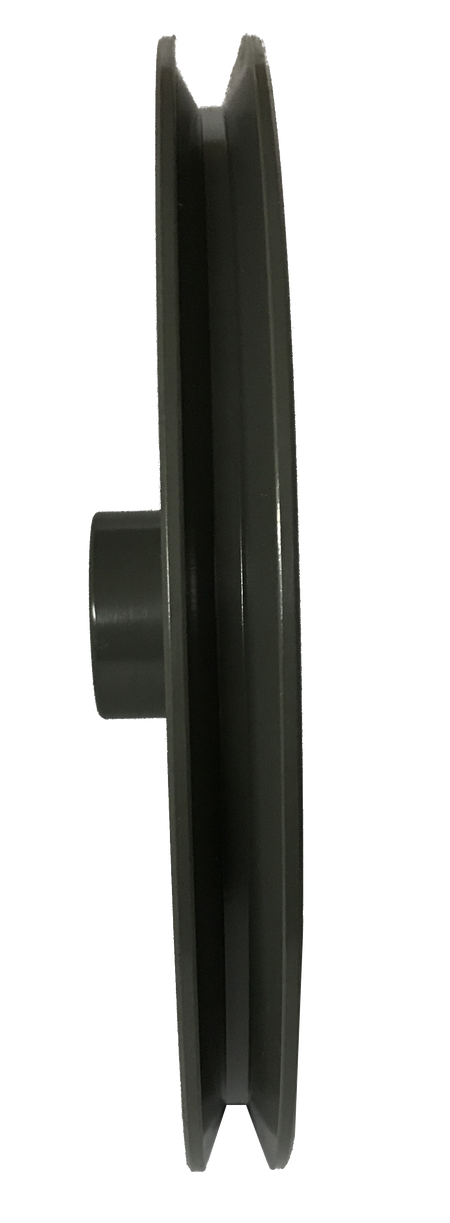

1P3V106 1-Groove 3V Series Split Taper Sheave
This 1-groove cast iron sheave fits 3V Series belts and features a split taper bushing. All our sheaves are manufactured to meet all common industry standards.

Bore Type Split Taper Length Through Bore 1.938” Face Width 0.688”
Bushing Bore Range 1/2 - 1 3/4'' Pulley Construction Spoked Application 3V Wedge Belt Drive
Width 2.141” Material Cast Iron Number Of Grooves 1
Outside Diameter 10.600” Bushing Series P1 Pitch Diameter 10.55 in
Keyway Size None (3/8 - 7/16 Bore), 1/8 x 1/16 (1/2 - 9/16 Bore) in, 3/16 x 3/32 (5/8 - 7/8 Bore) in, 1/4 x 1/8 (15/16 - 1 1/4 Bore) in, 5/16 x 5/32 (1 5/16 - 1 3/8 Bore) in, 3/8 x 3/16 (1 7/16 - 1 3/4 Bore) in.
