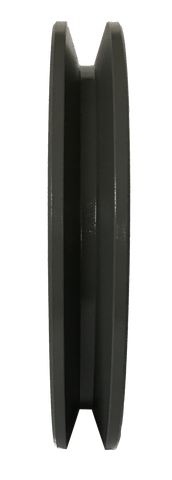

Disclaimer: If no product image is available a stock image will be displayed

Froedge Machine & Supply Co., Inc.

1TB60 1-Groove A/B Series Split Taper Sheave

In stock - 29 items available
$33.52

V-Belt Pulley - A, B Belt Section, 1 Groove, Bushing Required Bore Size, 6.3500 in O.D., Split Taper Bushed, P1 Series Bushing, Cast Iron Material

Application Classical A/B Belt Drive
Material Cast Iron
Bore Type Split Taper
Number Of Grooves 1
Outside Diameter 6.350”
Length Through Bore 1.938”
Face Width 1.000”
Bushing Series P1
Bushing Bore Range 1/2 - 1 3/4
Pitch Diameter 5.6 (A) in, 6 (B) in
Pulley Construction Webbed
Keyway Size 1/4 x 1/8 (15/16 to 1-1/4 Bore) in, 1/8 x 1/16 (1/2 to 9/16 Bore) in, 3/16 x 3/32 (5/8 to 7/8 Bore) in, 3/8 x 3/16 (1-7/16 to 1-3/4 Bore) in, 5/16 x 5/32 (1-5/16 to 1-3/8 Bore) in
