1VP62X118 1-Groove 4L/5L/A/B/5V Series Variable Pitch Pulley (1 1/8" Bore)

Out of stock
SKU: 1VP62X118
Regular price $138.33

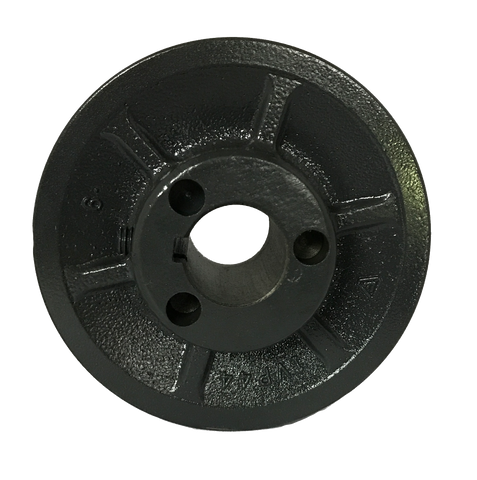

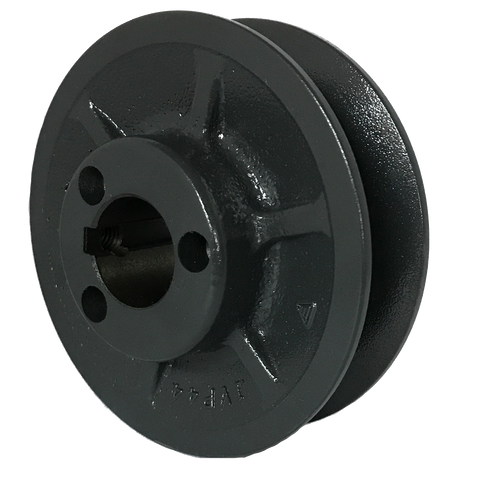

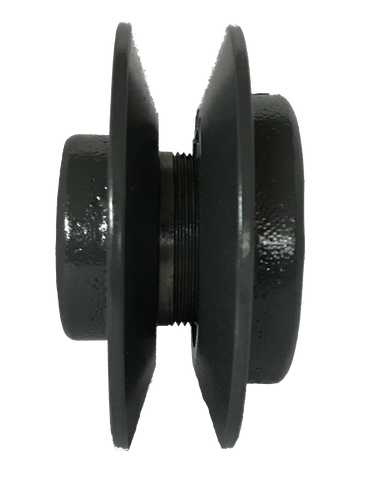

This 1-groove cast iron variable pitch sheave can be adjusted to fit 4L, 5L, A, B, and 5V Series belts and comes stock with a 1 1/8” finished bore with keyway. All our sheaves are manufactured to meet all common industry standards.

Bore Diameter 1 1/8'' Bore Type Finished with Keyway Length Through Bore 2.219”
Face Width 0.875 - 1.250” Pulley Construction VP (Variable Pitch) Min Pitch 4.2 (4L) in, 4.2 (A) in, 4.3 (5L) in, 4.3 (B) in, 4.7 (5V) in
Application 4L/A, 5L/B & 5V Classical Belt, FHP, & Wedge Belt Drives Width 2.219'' Material Cast Iron
Number Of Grooves 1 Outside Diameter 5.950” Keyway Size 1/4 x 1/8 in
Max Pitch 5-1/2 (B) in, 5-1/2 (5L) in, 5.2 (4L) in, 5.2 (A) in, 5.9 (5V) in
