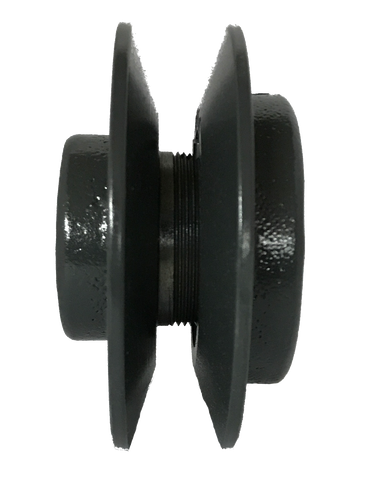

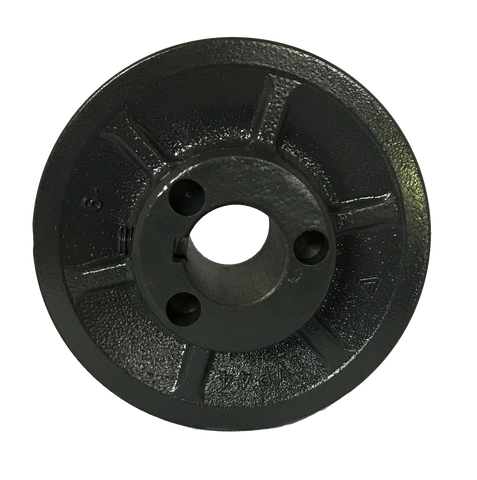

1VP68X34 1-Groove 4L/5L/A/B/5V Series Variable Pitch Pulley (3/4" Bore)
This 1-groove cast iron variable pitch sheave can be adjusted to fit 4L, 5L, A, B, and 5V Series belts and comes stock with a 3/4” finished bore with keyway. All our sheaves are manufactured to meet all common industry standards.
|Bore Diameter||3/4''||Bore Type||Finished with Keyway||Length Through Bore||2.219”|
|Face Width||0.875 - 1.250”||Pulley Construction||VP (Variable Pitch)||Min Pitch||4.7 (4L) in, 4.7 (A) in, 4.8 (5L) in, 4.8 (B) in, 5.2 (5V) in|
|Application||4L/A, 5L/B & 5V Classical Belt, FHP, & Wedge Belt Drives||Width||2.219''||Material||Cast Iron|
|Number Of Grooves||1||Outside Diameter||6.550”||Keyway Size||3/16 x 3/32 in|
|Max Pitch||5.7 (4L) in, 5.7 (A) in, 6 (5L) in, 6 (B) in, 6.4 (5V) in|
