2-3V6.0 2-Groove 3V Series Taper-Lock Sheave

Out of stock
SKU: 2-3V6.0
$223.70

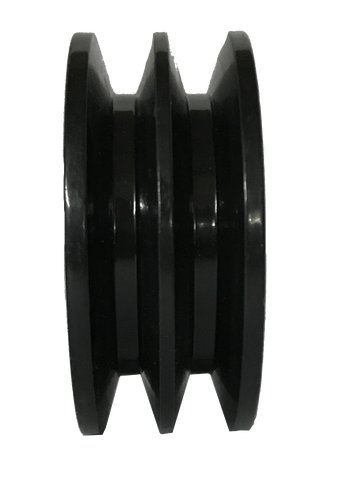

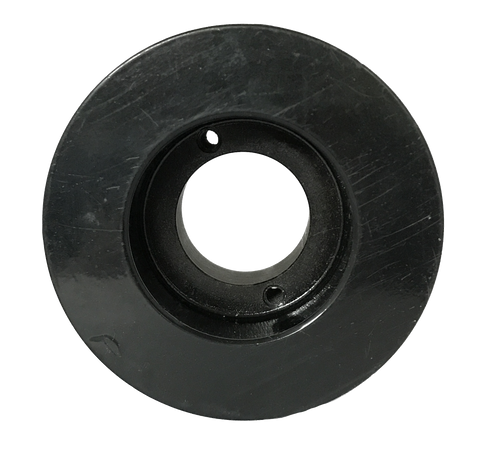

This 2-groove cast iron sheave fits 3V Series belts and features a taper-lock bushing. All our sheaves are manufactured to meet all common industry standards.

Bore Type Taper Locking Length Through Bore 1.000” Face Width 1.090”
Bushing Bore Range 1/2 - 1 11/16'' Pulley Construction Plain Application 3V Wedge Double Belt Drive
Width 1.090” Material Cast Iron Number Of Grooves 2
Outside Diameter 6.000” Bushing Series 1610 Pitch Diameter 5.95 in
Keyway Size 1/4 x 1/8 (15/16 to 1-1/4 Bore) in, 1/8 x 1/16 (1/2 to 9/16 Bore) in, 3/16 x 3/32 (5/8 to 7/8 Bore) in, 3/8 x 3/16 (1-7/16 to 1-11/16 Bore) in, 5/16 x 5/32 (1-5/16 to 1-3/8 Bore) in
