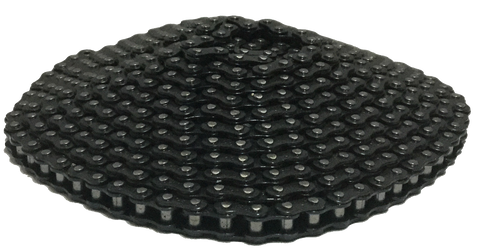

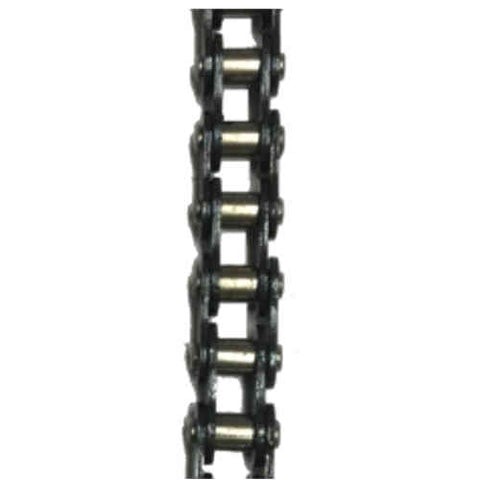

HKK #25 Standard Riveted Rollerless Split Bushing Chain 0.250" Pitch (SOLD BY THE FOOT)

In stock - 9 items available
$3.74

This specific chain has no roller – diameter refers to bushing diameter.



Standard roller chain is the most common form of chain used in mechanical drive applications. This type of chain is used in a multitude of settings ranging from industrial, to agricultural, to automotive. Heat treatment, shot-peening, and pre-stretching of chain improves its strength and durability and ensures maximum longevity.

Application Industrial, Agricultural, Automotive drives
Pitch 0.250”
Roller Width 0.125”
Height 0.236”
Plate Thickness 1 0.030”
Plate Thickness 2 0.030”
Average Tensile Strength 1,050 LB
Maximum Allowable Load 140 LB
Construction Riveted
Rivet End To Centerline 0.150”
Connecting End To Centerline 0.185”
Pin Diameter 0.091”
