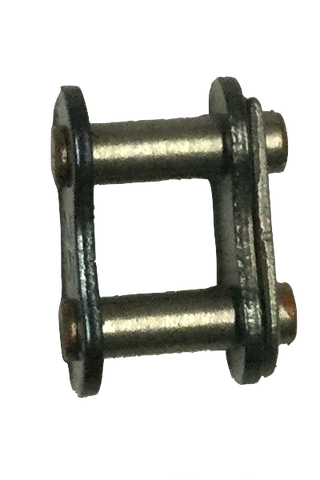

HKK #25 Standard Rollerless Chain Connecting Link (1/4" Pitch)
This specific chain has no roller – diameter refers to bushing diameter. Standard roller chain is the most common form of chain used in mechanical drive applications. This type of chain is used in a multitude of settings ranging from industrial, to agricultural, to automotive. Heat treatment, shot-peening, and pre-stretching of chain improves its strength and durability and ensures maximum longevity.
|Roller Width||0.125”||Plate Thickness 1||0.030”||Average Tensile Strength Lbs||1,050 LB|
|Maximum Allowable Load||140 LB||Construction||Riveted||Rivet End To Centerline||0.150”|
|Application||Industrial, Agricultural, Automotive drives||Pin Diameter||0.091”||Pitch||0.250”|
|Height||0.236”||Plate Thickness 2||0.030”||Connecting End To Centerline||0.185”|
