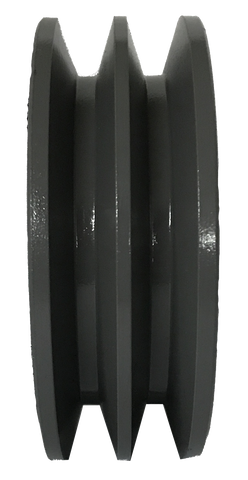

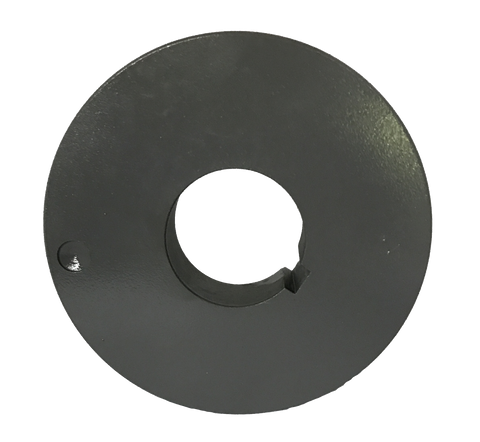

2B5V60 2-Groove 5V/A/B Series Split Taper Sheave

  • $47.74

This 2-groove cast iron sheave fits 5V, A, and B Series belts and features a split taper bushing. All our sheaves are manufactured to meet all common industry standards.

Bore Type Split Taper Length Through Bore 1.938” Face Width 1.719”
Bushing Bore Range 1/2 - 2 7/16'' Pulley Construction Plain Application 5V Double Wedge and A/B Classical Belt Drive
Width 2.484” Material Cast Iron Number Of Grooves 2
Outside Diameter 6.280” Bushing Series B Pitch Diameter 5.6 (A) in, 6 (B) in, 6.1 (5V) in
Keyway Size 1/2 x 1/4 (1-13/16 to 2-1/4 Bore) in, 1/4 x 1/8 (15/16 to 1-1/4 Bore) in, 1/8 x 1/16 (1/2 to 9/16 Bore) in, 3/16 x 3/32 (5/8 to 7/8 Bore) in, 3/8 x 3/16 (1-7/16 to 1-3/4 Bore) in, 5/16 x 5/32 (1-5/16 to 1-3/8 Bore) in, 5/8 x 5/16 (2-5/16 to 2-11/16 Bore)
