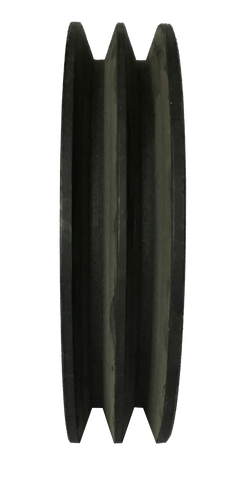

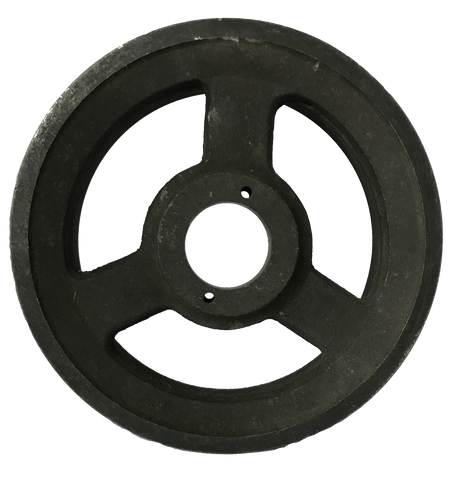

2BK120X1716 2-Groove 4L/5L/A/B Series Finished Bore Sheave (1 7/16" Bore)
This 2-groove cast iron sheave fits 4L, 5L, A, and B Series belts and comes stock with a 1 7/16” finished bore with keyway. All our sheaves are manufactured to meet all common industry standards.
|Bore Diameter||1 7/16''||Bore Type||Finished with Keyway||Length Through Bore||1.594”|
|Face Width||1.750”||Pulley Construction||Spoked||Application||4L/A & 5L/B Double Classical Belt & FHP Drives|
|Width||2.094”||Material||Cast Iron||Number Of Grooves||2|
|Outside Diameter||11.750”||Pitch Diameter||11 (4L Section/A Section) in, 11.4 (5L Section/B Section) in||Keyway Size||3/8 x 3/16 in|
