Froedge Machine & Supply Co., Inc.

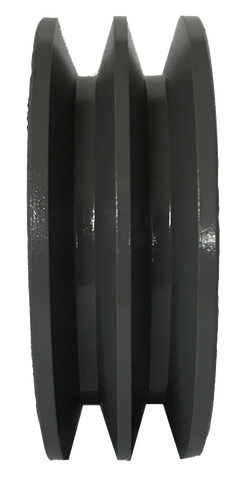

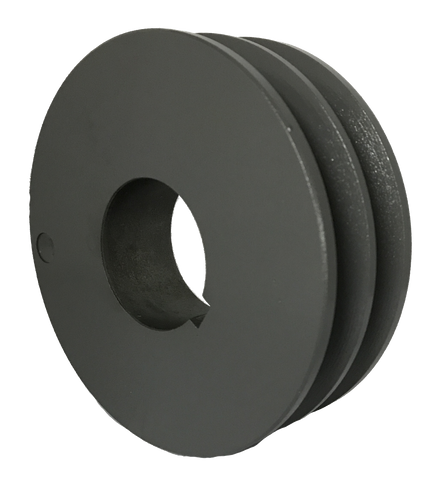

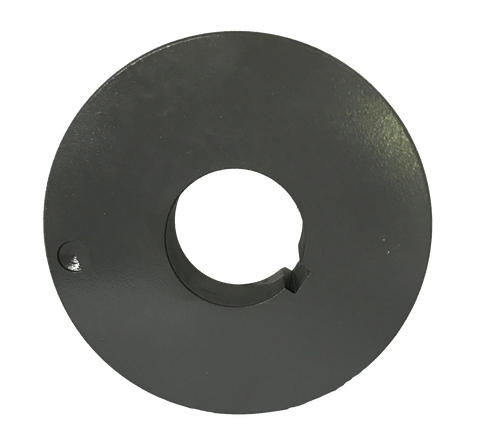

2TB46 2-Groove A/B Series Split Taper Sheave

In stock - 34 items available
$46.34

This 2-groove cast iron sheave fits A and B Series belts and features a split taper bushing. All our sheaves are manufactured to meet all common industry standards.

Bore Type Split Taper Length Through Bore 1.938” Face Width 1.750”
Bushing Bore Range 1/2 - 1 3/4'' Pulley Construction Plain Application Classical A/B Double Belt Drive
Width 2.188” Material Cast Iron Number Of Grooves 2
Outside Diameter 4.950” Bushing Series P1 Pitch Diameter 4.2 (A) in, 4.6 (B) in
Keyway Size 1/4 x 1/8 (15/16 to 1-1/4 Bore) in, 1/8 x 1/16 (1/2 to 9/16 Bore) in, 3/16 x 3/32 (5/8 to 7/8 Bore) in, 3/8 x 3/16 (1-7/16 to 1-3/4 Bore) in, 5/16 x 5/32 (1-5/16 to 1-3/8 Bore) in
