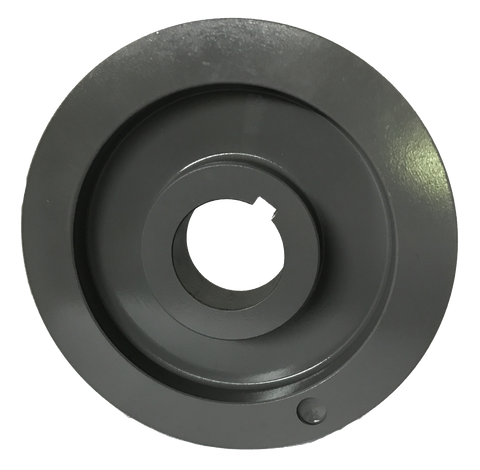

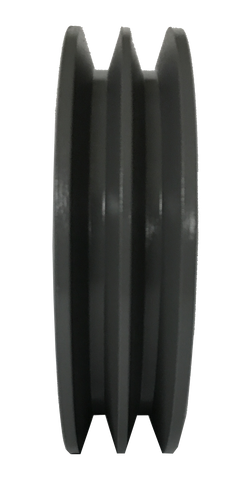

2TB70 2-Groove A/B Series Split Taper Sheave

  • $45.47

This 2-groove cast iron sheave fits A and B Series belts and features a split taper bushing. All our sheaves are manufactured to meet all common industry standards.

Bore Type Split Taper Length Through Bore 2.500” Face Width 1.750”
Bushing Bore Range 3/4 - 2 11/16'' Pulley Construction Webbed Application Classical A/B Double Belt Drive
Width 2.781” Material Cast Iron Number Of Grooves 2
Outside Diameter 7.350” Bushing Series Q1 Pitch Diameter 6.6 (A) in, 7 (B) in
Keyway Size 1/2 x 1/4 (1-13/16 to 2-1/4 Bore) in, 1/4 x 1/8 (15/16 to 1-1/4 Bore) in, 3/16 x 3/32 (5/8 to 7/8 Bore) in, 3/8 x 3/16 (1-7/16 to 1-3/4 Bore) in, 5/16 x 5/32 (1-5/16 to 1-3/8 Bore) in, 5/8 x 5/16 (2-5/16 to 2-11/16 Bore) in
