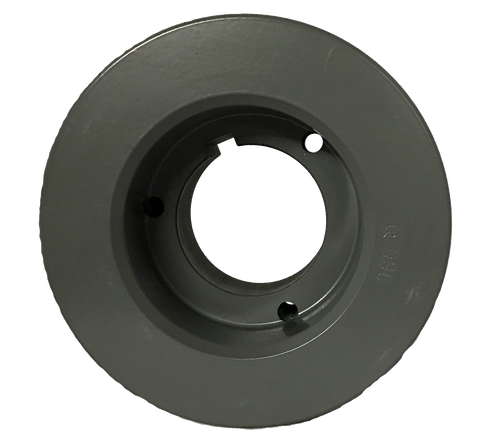

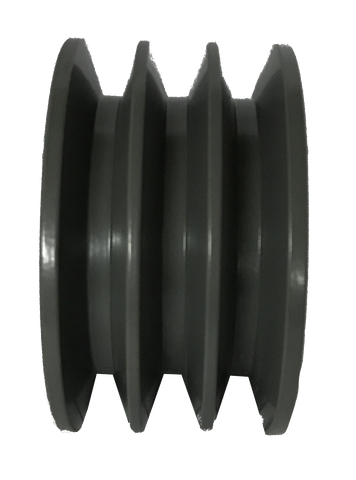

3-3V6.5 3-Groove 3V Series Taper-Lock Sheave

Out of stock
$261.60

This 3-groove cast iron sheave fits 3V Series belts and features a taper-lock bushing. All our sheaves are manufactured to meet all common industry standards.

Bore Type Taper Locking Length Through Bore 1.750” Face Width 1.500”
Bushing Bore Range 1/2 - 2 11/16'' Pulley Construction Plain Application 3V Wedge Triple Belt Drive
Width 1.750” Material Cast Iron Number Of Grooves 3
Outside Diameter 6.500” Bushing Series 2517 Pitch Diameter 6.45 in
Keyway Size 1/2 x 1/4 (1-13/16 to 2-1/4 Bore) in, 1/4 x 1/8 (15/16 to 1-1/4 Bore) in, 1/8 x 1/16 (1/2 Bore) in, 3/16 x 3/32 (5/8 to 7/8 Bore) in, 3/8 x 3/16 (1-7/16 to 1-3/4 Bore) in, 5/16 x 5/32 (1-5/16 to 1-3/8 Bore) in, 5/8 x 5/16 (2-5/16 to 2-11/16 Bore) in
