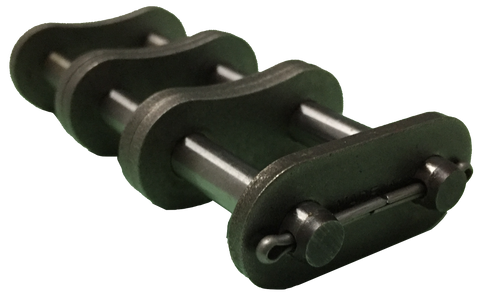

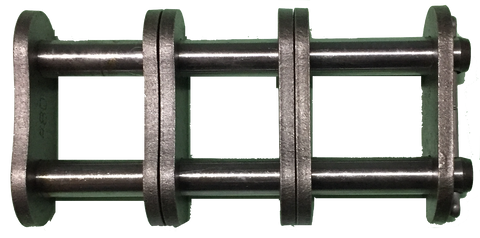

HKK 3-Strand #80 Standard Roller Chain Connecting Link (1" Pitch)
Standard roller chain is the most common form of chain used in mechanical drive applications. This type of chain is used in a multitude of settings ranging from industrial, to agricultural, to automotive. Heat treatment, shot-peening, and pre-stretching of chain improves its strength and durability and ensures maximum longevity.
|Roller Width||0.625”||Plate Thickness 1||0.125”||Average Tensile Strength Lbs||53,100 LB|
|Maximum Allowable Load||8,250 LB||Construction||Riveted or Cottered||Rivet End To Centerline||1.780”|
|Application||Industrial, Agricultural, Automotive drives||Pin Diameter||0.312”||Pitch||1.000”|
|Height||0.921”||Plate Thickness 2||0.125”||Connecting End To Centerline||1.898”|
