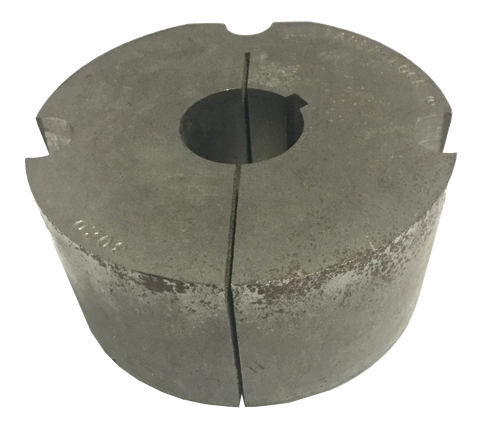

3020 X 1-1/2 Taper Lock Bushing with Finished Bore (1 1/2" Bore)-3020X112
Built to withstand high torque capacity applications, taper bore bushings are split bushings that utilize set screws to lock on shafts in addition to keyways. The split, flangeless design and narrow hub creates a small center of load that further improves their torque capacities.
*Weights are approximate and vary based on bore diameter.
|Bore Diameter||1 1/2''||Bore Type||Finished with Keyway||Length Through Bore||2”|
|Bolt Diameter||5/8”||Application||Mounting of various high torque drive component, including sheaves, pulleys, and sprockets.||Screw Length||1 1/4”|
|Screw Torque||800 in-lbs||Material||Cast Iron||Outside Diameter||4 1/4”|
|Bushing Series||3020||Keyway Size||3/8'' X 3/16''||Bolt Circle Diameter||4''|
|Torque Capacity||24,000 ft-lbs||Number Of Bolts||2|
