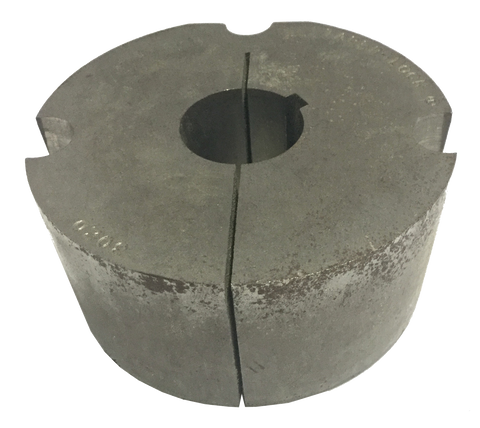

3020 X 1-1/4 Taper Lock Bushing with Finished Bore (1 1/4" Bore)-3020X114

Only 1 left
$40.00

Built to withstand high torque capacity applications, taper bore bushings are split bushings that utilize set screws to lock on shafts in addition to keyways. The split, flangeless design and narrow hub creates a small center of load that further improves their torque capacities.



*Weights are approximate and vary based on bore diameter.

Application Mounting of various high torque drive component, including sheaves, pulleys, and sprockets.
Bore Diameter 1 1/4
Material Cast Iron
Bore Type Finished with Keyway
Outside Diameter 4 1/4”
Length Through Bore 2”
Bushing Series 3020
Keyway Size 1/4 X 1/8
Bolt Circle Diameter 4
Torque Capacity 24,000 ft-lbs
Number Of Bolts 2
Bolt Diameter 5/8”
Screw Length 1 1/4”
Screw Torque 800 in-lbs
