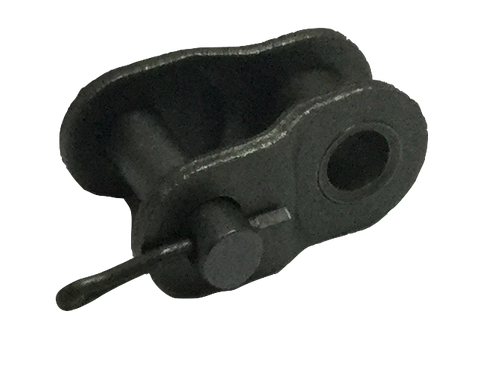

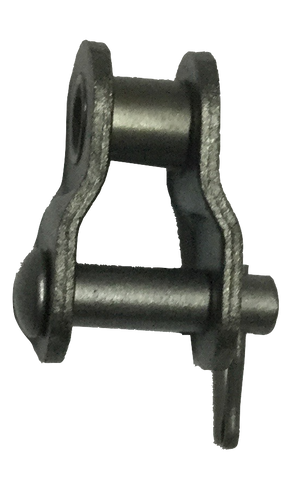

#35 Standard Rollerless Chain Offset Link (3/8" Pitch)

In stock - 6 items available
$2.61

Offset links, or half links, are used when a chain needs to be extended/shortened by only half the length of the normal pitch. These links feature cotterpins to seamlessly connect to original chain. This specific chain has no roller – diameter refers to bushing diameter.

Application Extend/reduce chain length by 1/2 pitch.
Pitch 0.375”
Roller Width 0.188”
Height 0.347”
Plate Thickness 1 0.050”
Plate Thickness 2 0.050”
Average Tensile Strength 2,400 LB
Maximum Allowable Load 560 LB
Construction Riveted
Rivet End To Centerline 0.233”
Connecting End To Centerline 0.266”
Pin Diameter 0.141”
