3Q5V75 3-Groove 5V Series Split Taper Sheave

In stock - 4 items available
$294.56

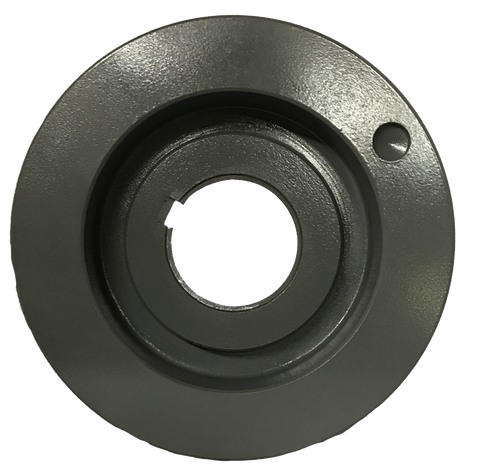

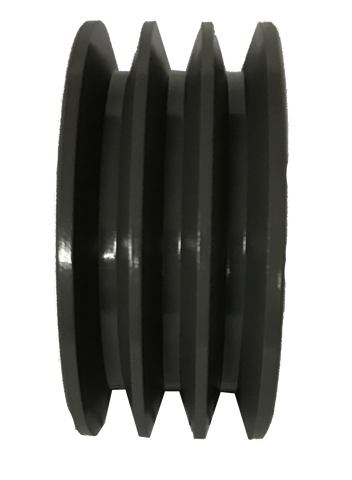

This 3-groove cast iron sheave fits 5V Series belts and features a split taper bushing. All our sheaves are manufactured to meet all common industry standards.

Bore Type Split Taper Length Through Bore 2.500” Face Width 2.375”
Bushing Bore Range 3/4 - 2 11/16'' Pulley Construction Webbed Application 5V Triple Wedge Belt Drive
Width 2.969” Material Cast Iron Number Of Grooves 3
Outside Diameter 7.500” Bushing Series Q1 Pitch Diameter 7.4 in
Keyway Size 1/2 x 1/4 (1-13/16 to 2-1/4 Bore) in, 1/4 x 1/8 (15/16 to 1-1/4 Bore) in, 3/16 x 3/32 (5/8 to 7/8 Bore) in, 3/8 x 3/16 (1-7/16 to 1-3/4 Bore) in, 5/16 x 5/32 (1-5/16 to 1-3/8 Bore) in, 5/8 x 5/16 (2-5/16 to 2-3/4 Bore) in
