3TB34 3-Groove A/B Series Split Taper Sheave

Out of stock
$74.31

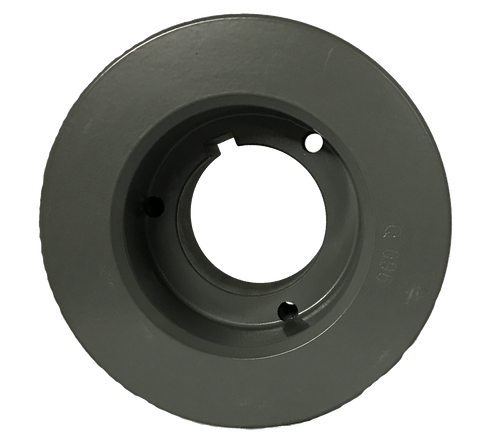

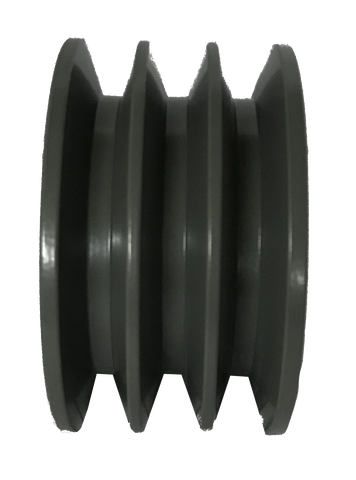

This 3-groove cast iron sheave fits A and B Series belts and features a split taper bushing. All our sheaves are manufactured to meet all common industry standards.

Bore Type Split Taper Length Through Bore 2.938” Face Width 2.500”
Bushing Bore Range 3/4 - 1 3/4'' Pulley Construction Plain Application Classical A/B Triple Belt Drive
Width 3.813” Material Cast Iron Number Of Grooves 3
Outside Diameter 3.750” Bushing Series P2 Pitch Diameter 3 (A) in, 3.4 (B) in
Keyway Size 1/4 x 1/8 (15/16 to 1-1/4 Bore) in, 3/16 x 3/32 (5/8 to 7/8 Bore) in, 3/8 x 3/16 (1-7/16 to 1-3/4 Bore) in, 5/16 x 5/32 (1-5/16 to 1-3/8 Bore) in
