3TB60 3-Groove A/B Series Split Taper Sheave

Only 1 left
$256.91

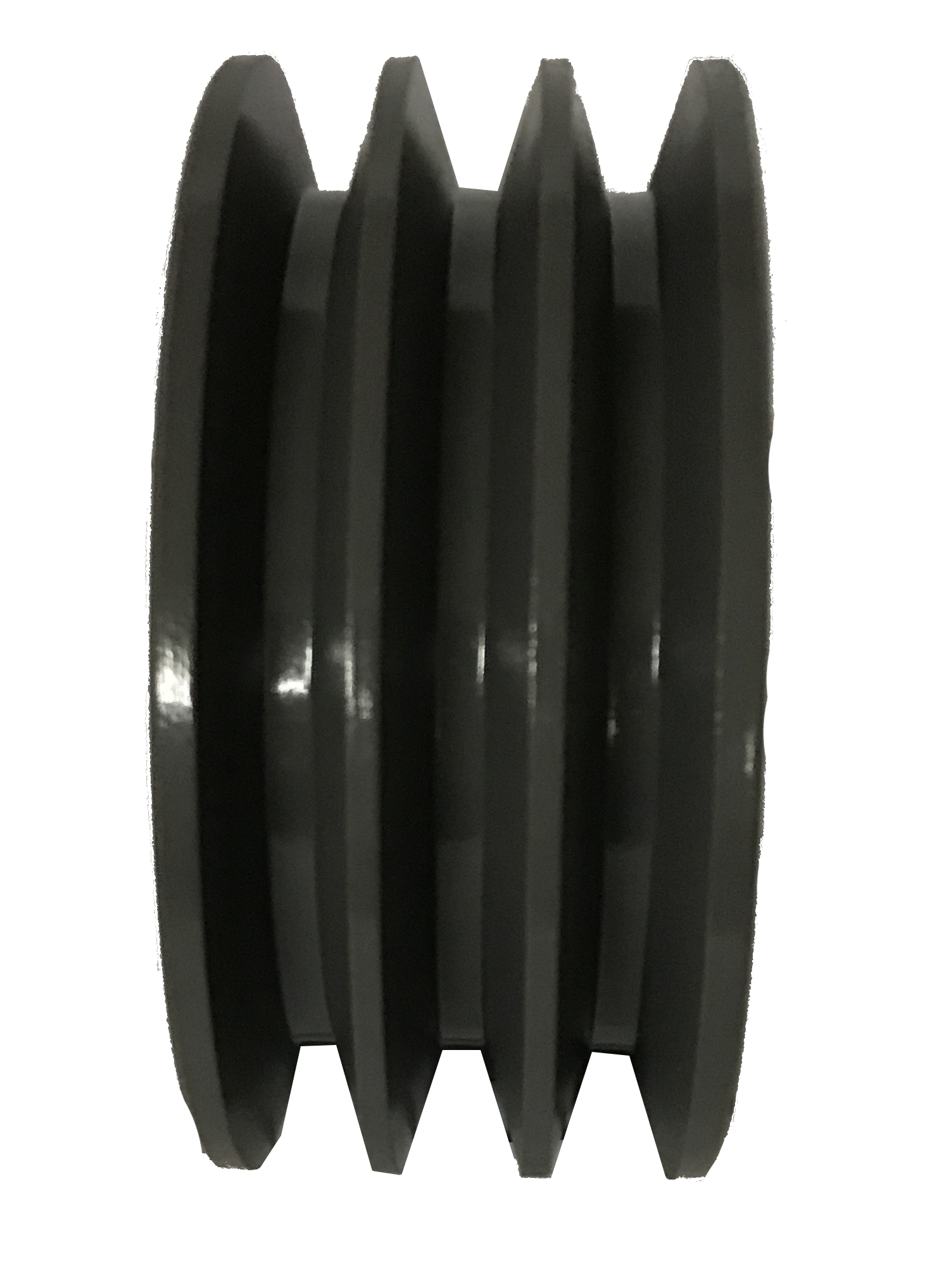

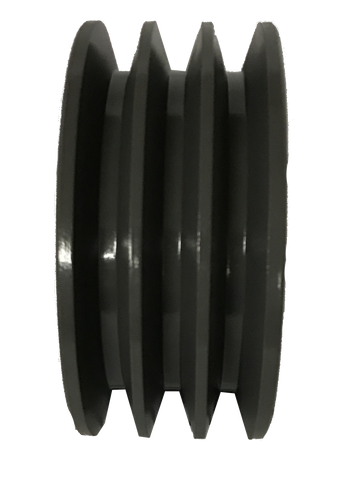

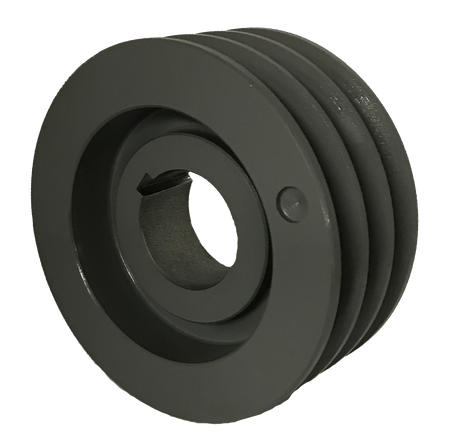

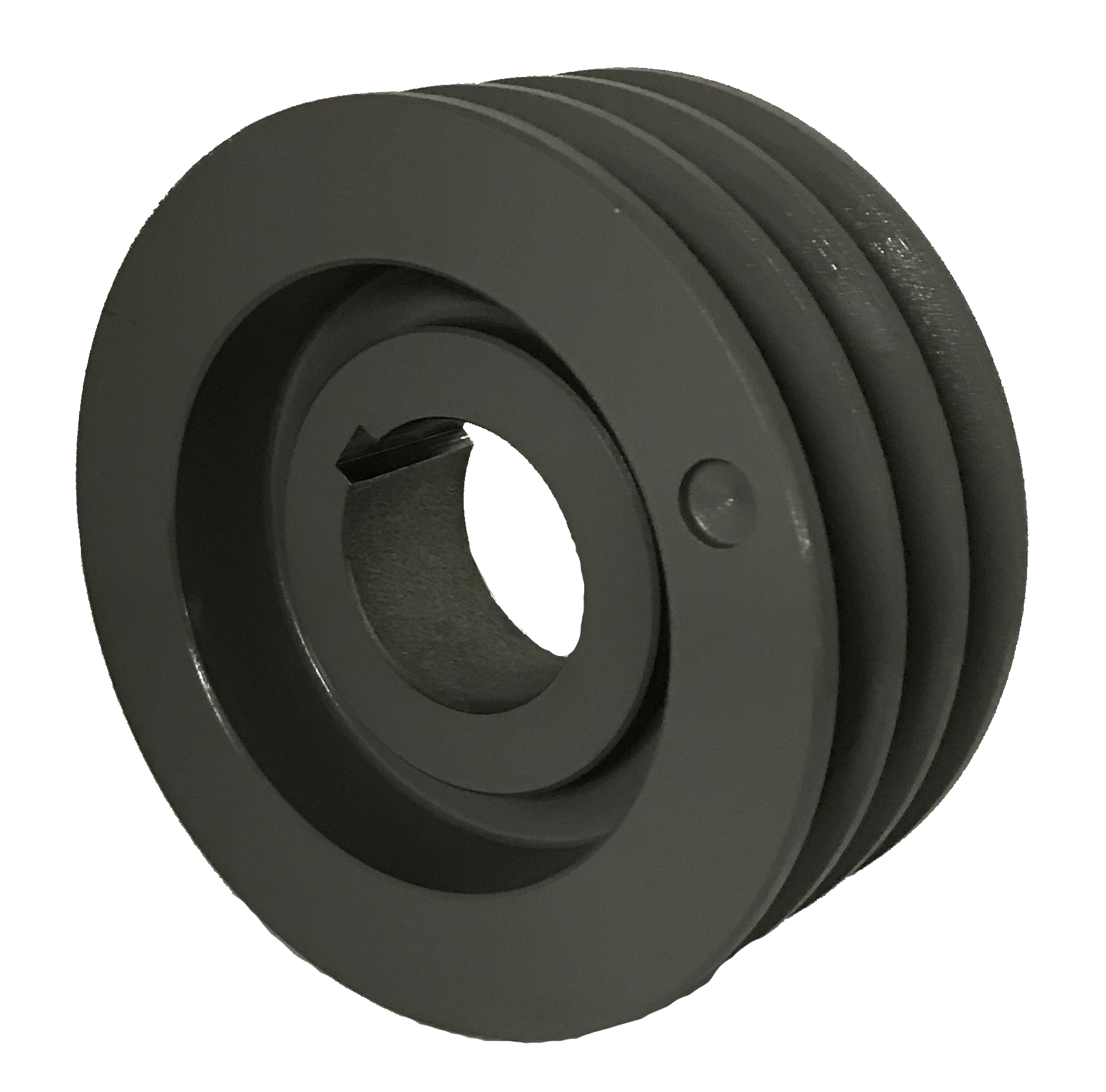

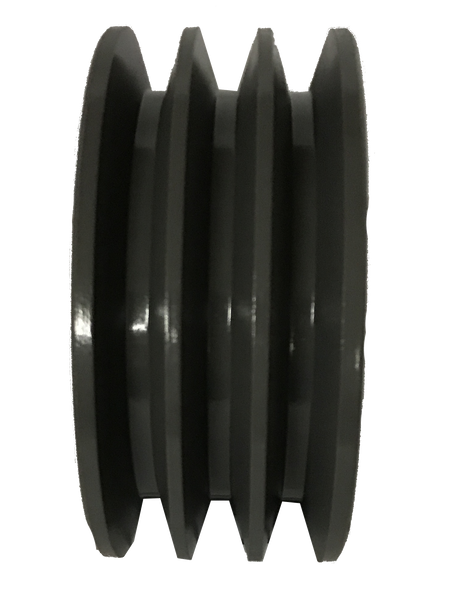

This 3-groove cast iron sheave fits A and B Series belts and features a split taper bushing. All our sheaves are manufactured to meet all common industry standards.

Application Classical A/B Triple Belt Drive
Material Cast Iron
Bore Type Split Taper
Number Of Grooves 3
Outside Diameter 6.350”
Length Through Bore 1.938”
Face Width 2.500”
Bushing Series P1
Bushing Bore Range 1/2 - 1 3/4
Pitch Diameter 5.6 (A) in, 6 (B) in
Pulley Construction Webbed
Keyway Size 1/4 x 1/8 (15/16 to 1-1/4 Bore) in, 1/8 x 1/16 (1/2 to 9/16 Bore) in, 3/16 x 3/32 (5/8 to 7/8 Bore) in, 3/8 x 3/16 (1-7/16 to 1-3/4 Bore) in, 5/16 x 5/32 (1-5/16 to 1-3/8 Bore) in
