3TB80 3-Groove A/B Series Split Taper Sheave

Out of stock
$191.29

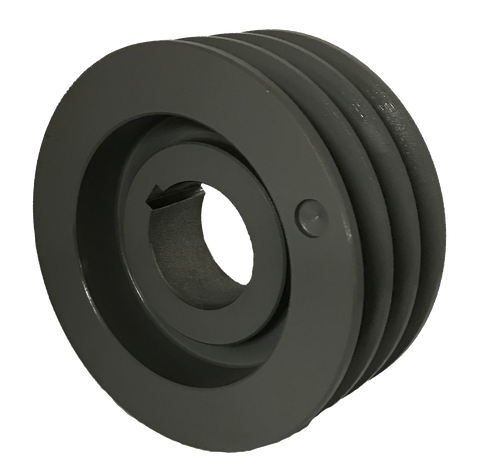

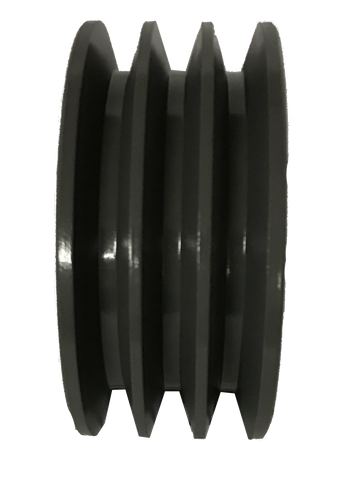

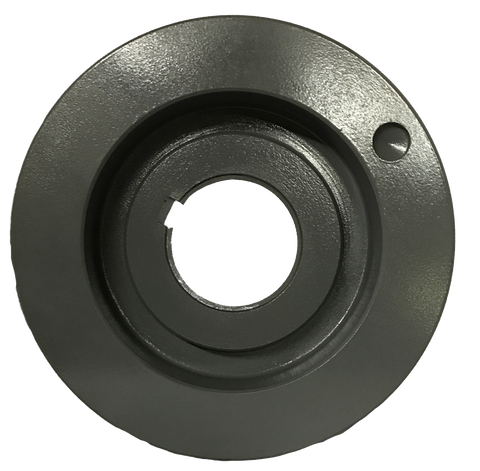

This 3-groove cast iron sheave fits A and B Series belts and features a split taper bushing. All our sheaves are manufactured to meet all common industry standards.

Application Classical A/B Triple Belt Drive
Material Cast Iron
Bore Type Split Taper
Number Of Grooves 3
Outside Diameter 8.350”
Length Through Bore 2.500”
Face Width 2.500”
Bushing Series Q1
Bushing Bore Range 3/4 - 2 11/16
Pitch Diameter 7.6 (A) in, 8 (B) in
Pulley Construction Webbed
Keyway Size 1/2 x 1/4 (1-13/16 to 2-1/4 Bore) in, 1/4 x 1/8 (15/16 to 1-1/4 Bore) in, 3/16 x 3/32 (5/8 to 7/8 Bore) in, 3/8 x 3/16 (1-7/16 to 1-3/4 Bore) in, 5/16 x 5/32 (1-5/16 to 1-3/8 Bore) in, 5/8 x 5/16 (2-5/16 to 2-11/16 Bore) in
