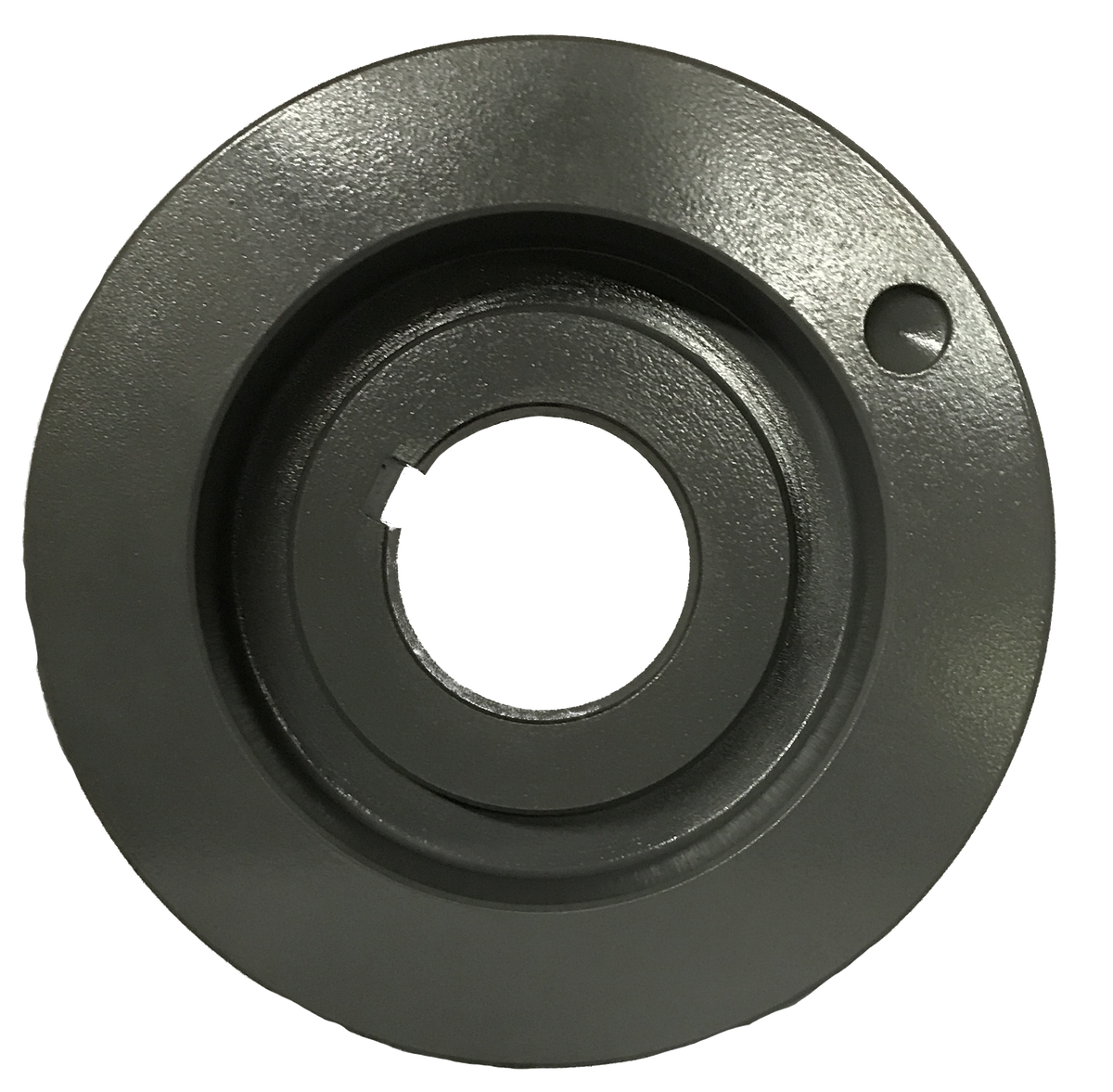

3TC86 3-Groove C Series Split Taper Sheave
Regular price
$0.00
Couldn't load pickup availability
This 3-groove cast iron sheave fits C Series belts and features a split taper bushing. All our sheaves are manufactured to meet all common industry standards.
| Bore Type | Split Taper | Length Through Bore | 2.500” | Face Width | 3.250” |
| Bushing Bore Range | 3/4 - 2 11/16'' | Pulley Construction | Webbed | Application | Classical C Triple Belt Drive |
| Width | 3.531” | Material | Cast Iron | Number Of Grooves | 3 |
| Outside Diameter | 9.000” | Bushing Series | Q1 | Pitch Diameter | 8.6 in |
| Keyway Size | 1/2 x 1/4 (1-13/16 to 2-1/4 Bore) in, 1/4 x 1/8 (15/16 to 1-1/4 Bore) in, 3/16 x 3/32 (3/4 to 7/8 Bore) in, 3/8 x 3/16 (1-7/16 to 1-3/4 Bore) in, 5/16 x 5/32 (1-5/16 to 1-3/8 Bore) in, 5/8 x 5/16 (2-5/16 to 2-11/16 Bore) in |
