4018W 18-Tooth, 40 Standard Roller Chain W-Series Hub Sprocket (1/2" Pitch)

Only 3 left
$9.54

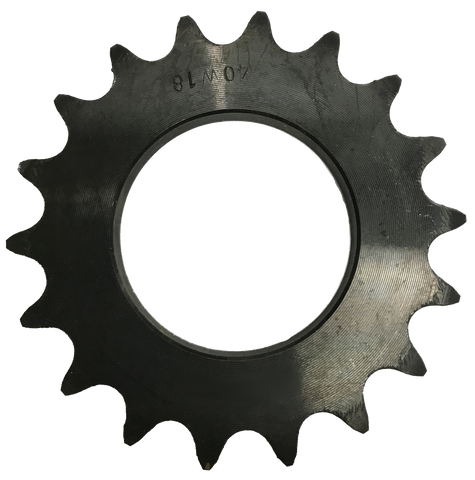

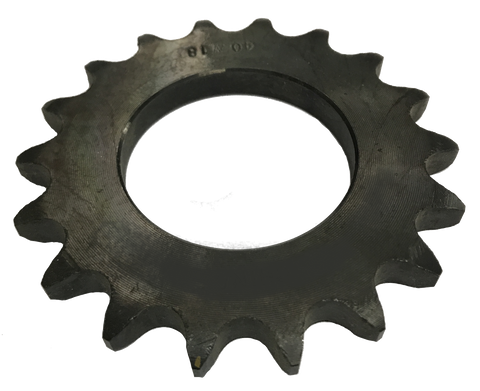

This 18-Tooth sprocket fits #40 standard roller chain and features a W-Series hub.

Bore Diameter 1 5/8” Construction V-Series Hub Bore Type 0
Bushing Bore Range 0 Application Power transmission in mechanical drive applications (conveying, lifting, industrial machinery, forestry, etc.) Chain Number 40
Pitch 1/2'' Number Of Strands 1 Material Steel
Outside Diameter 3 1/8'' Pitch Diameter 2.879'' Number Of Teeth 18
Thickness 0.284''
