4022X 22-Tooth, 40 Standard Roller Chain X-Series Hub Sprocket (1/2" Pitch)

Out of stock
SKU: 4022X
$13.14

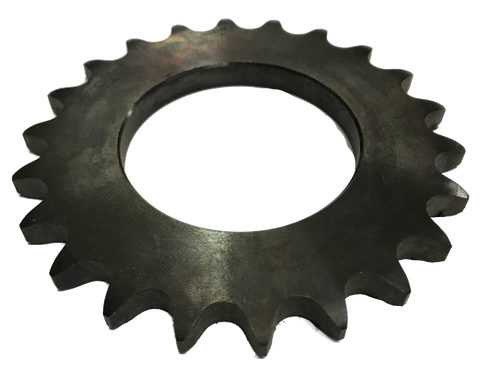

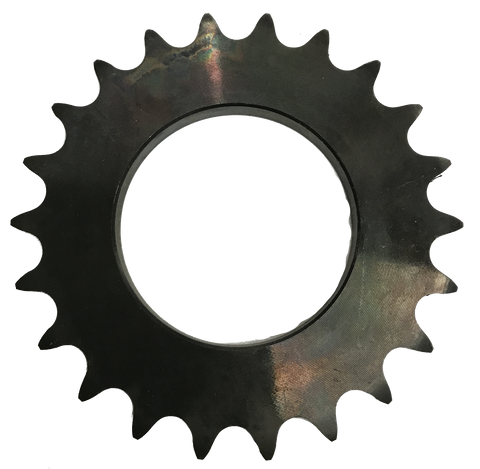

This 22-Tooth sprocket fits #40 standard roller chain and features an X-Series hub.

Bore Diameter 2” Construction X-Series Hub Bore Type 0
Bushing Bore Range 0 Application Power transmission in mechanical drive applications (conveying, lifting, industrial machinery, forestry, etc.) Chain Number 40
Pitch 1/2'' Number Of Strands 1 Material Steel
Outside Diameter 3 3/4'' Pitch Diameter 3.513'' Number Of Teeth 22
Thickness 0.284''
