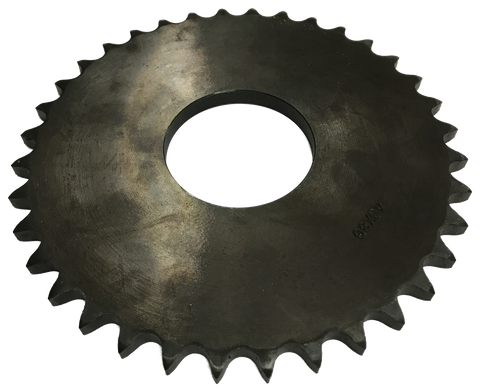

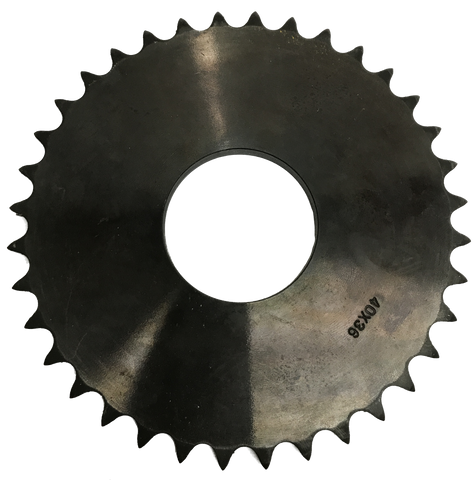

4036X 36-Tooth, 40 Standard Roller Chain X-Series Hub Sprocket (1/2" Pitch)

Only 2 left
$12.20

This 36-Tooth sprocket fits #40 standard roller chain and features an X-Series hub.

Application Power transmission in mechanical drive applications (conveying, lifting, industrial machinery, forestry, etc.)
Pitch 1/2
Bore Diameter 2”
Number Of Strands 1
Construction X-Series Hub
Material Steel
Bore Type 0
Outside Diameter 6
Bushing Bore Range 0
Pitch Diameter 5.737
Number Of Teeth 36
Chain Number 40
