4045X 45-Tooth, 40 Standard Roller Chain X-Series Hub Sprocket (1/2" Pitch)

Only 1 left
$33.17

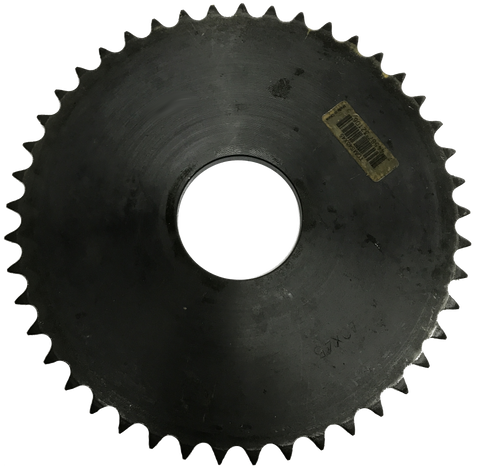

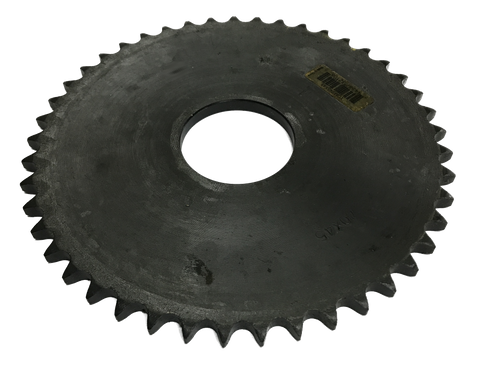

This 45-Tooth sprocket fits #40 standard roller chain and features an X-Series hub.

Bore Diameter 2” Construction X-Series Hub Bore Type 0
Bushing Bore Range 0 Application Power transmission in mechanical drive applications (conveying, lifting, industrial machinery, forestry, etc.) Chain Number 40
Pitch 1/2'' Number Of Strands 1 Material Steel
Outside Diameter 7 3/8'' Pitch Diameter 7.168'' Number Of Teeth 45
Thickness 0.284''
