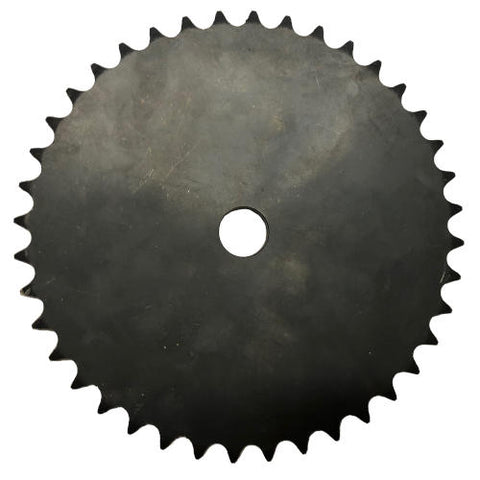

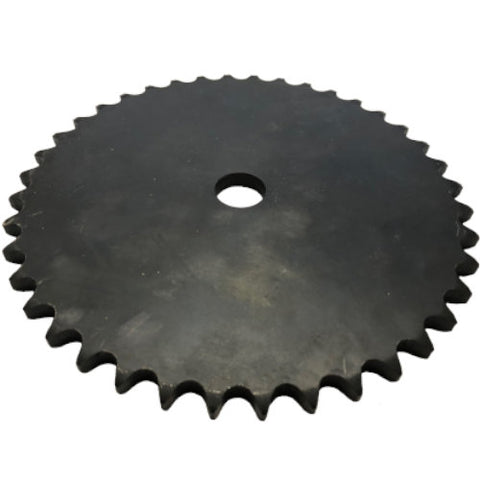

40A40 40-Tooth, 40 Standard Roller Chain Type A Sprocket (1/2" Pitch)
This Type A, steel plate sprocket drives #40 standard roller chain. All of our sprockets are manufactured with hardened steel teeth to improve overall strength and prevent wear and tear on both the sprocket and the chain. CUSTOM BORING AVAILABLE. GIVE US A CALL TODAY!
| Bore Diameter | 5/8” | Construction | Type A Steel Plate | Bore Type | Rough Stock Bore |
| Bushing Bore Range | 0.625 - 5.81'' | Application | Power transmission in mechanical drive applications (conveying, lifting, industrial machinery, forestry, etc.) | Chain Number | 40 |
| Pitch | 1/2'' | Number Of Strands | 1 | Material | Steel |
| Outside Diameter | 6.55'' | Pitch Diameter | 6.373'' | Number Of Teeth | 40 |
| Thickness | 0.284'' |
