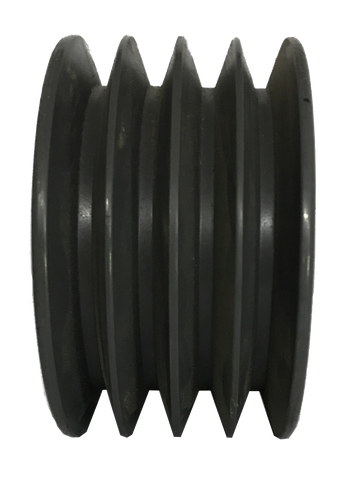

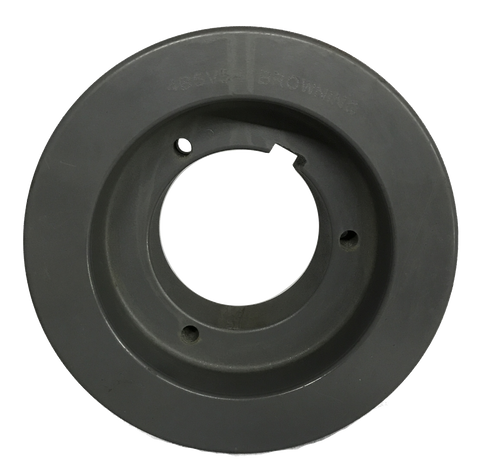

4TC70 4-Groove C Series Split Taper Sheave

  • $118.90

This 4-groove cast iron sheave fits C Series belts and features a split taper bushing. All our sheaves are manufactured to meet all common industry standards.

Bore Type Split Taper Length Through Bore 3.500” Face Width 4.250”
Bushing Bore Range 1 - 2 5/8'' Pulley Construction Webbed Application Classical C 4-Belt Drive
Width 4.531” Material Cast Iron Number Of Grooves 4
Outside Diameter 7.400” Bushing Series Q2 Pitch Diameter 7 in
Keyway Size 1/2 x 1/4 (1-13/16 to 2-1/4 Bore) in, 1/4 x 1/8 (1 to 1-1/4 Bore) in, 3/8 x 3/16 (1-7/16 to 1-3/4 Bore) in, 5/16 x 5/32 (1-5/16 to 1-3/8 Bore) in, 5/8 x 5/16 (2-5/16 to 2-5/8 Bore) in
