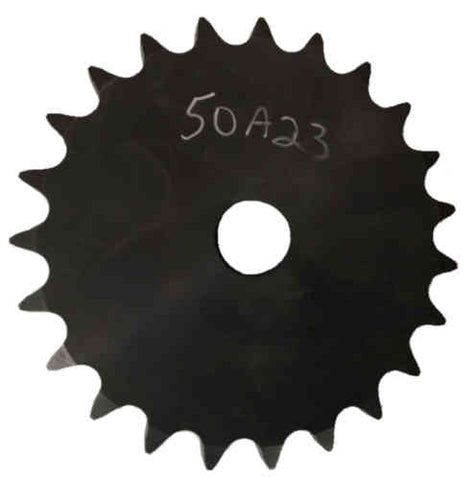

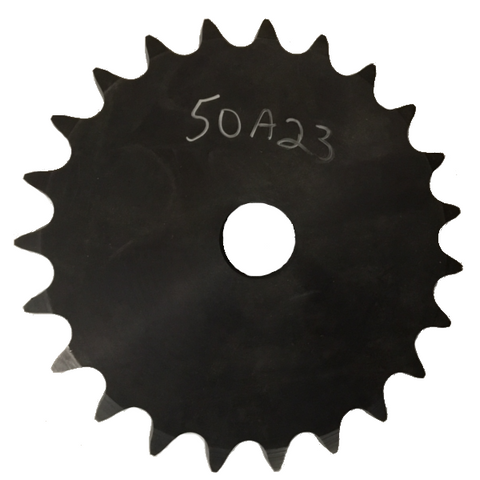

50A23 23-Tooth, 50 Standard Roller Chain Type A Sprocket (5/8" Pitch)

  • $10.92

This Type A, steel plate sprocket drives #50 standard roller chain. All of our sprockets are manufactured with hardened steel teeth to improve overall strength and prevent wear and tear on both the sprocket and the chain. CUSTOM BORING AVAILABLE - CALL 1-888-868-5891

Bore Diameter 3/4” Construction Type A Steel Plate Bore Type Rough Stock Bore
Bushing Bore Range 0.750 - 3.89'' Application Power transmission in mechanical drive applications (conveying, lifting, industrial machinery, forestry, etc.) Chain Number 50
Pitch 5/8'' Number Of Strands 1 Material Steel
Outside Diameter 4.90'' Pitch Diameter 4.59'' Number Of Teeth 23
Thickness 0.343''
