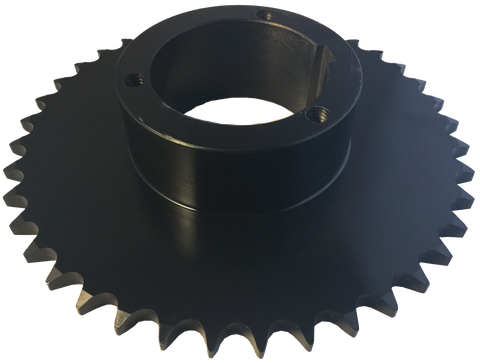

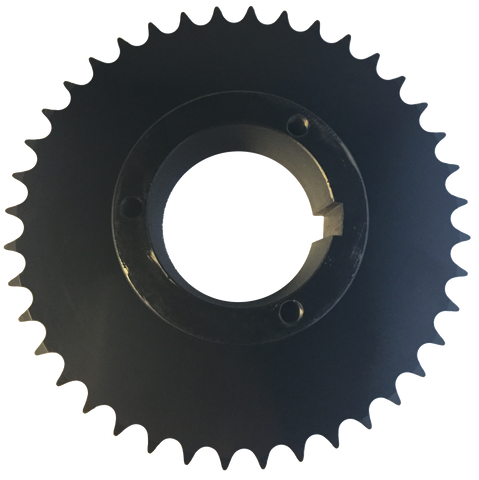

50Q40 40-Tooth, 50 Standard Roller Chain Split Taper Sprocket (5/8" Pitch)

Out of stock
$73.03

This sprocket drives #50 standard roller chain and features a split taper bushing. All of our sprockets are manufactured with hardened steel teeth to improve overall strength and prevent wear and tear on both the sprocket and the chain.

Bore Diameter 3/4” Construction Split Taper Bore Type Q
Length Through Bore 2 1/2'' Bushing Bore Range 3/4 - 2 11/16'' Application Power transmission in mechanical drive applications (conveying, lifting, industrial machinery, forestry, etc.)
Chain Number 50 Width 2.781” Pitch 5/8''
Number Of Strands 1 Material Steel Outside Diameter 8.32''
Pitch Diameter 7.966'' Number Of Teeth 40 Thickness 0.343''
