5TC110 5-Groove C Series Split Taper Sheave
Regular price
$0.00
Couldn't load pickup availability

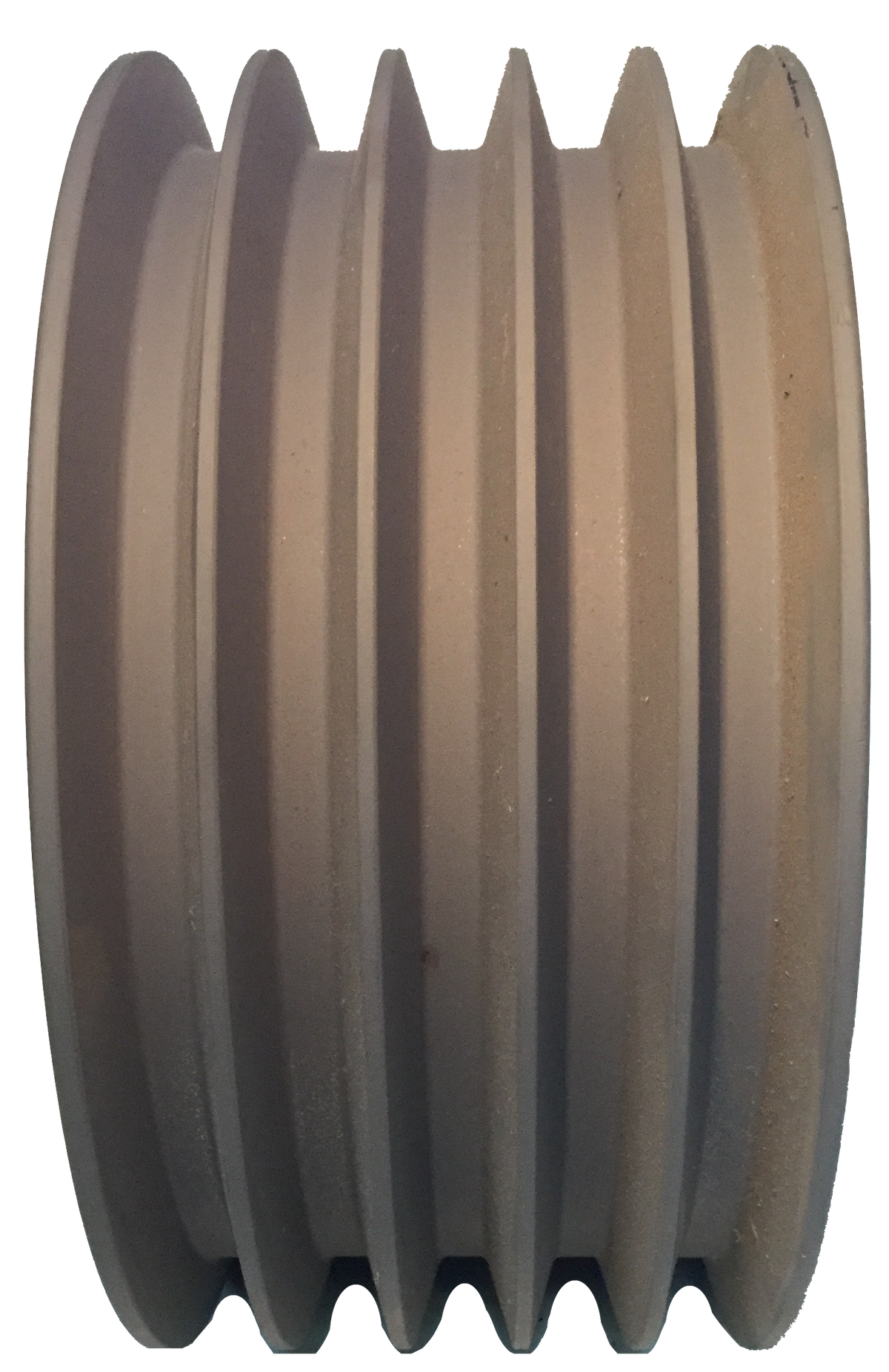

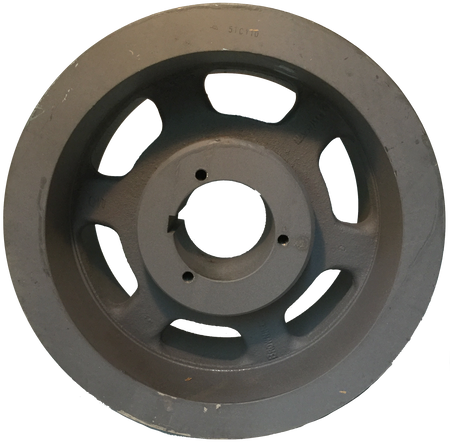

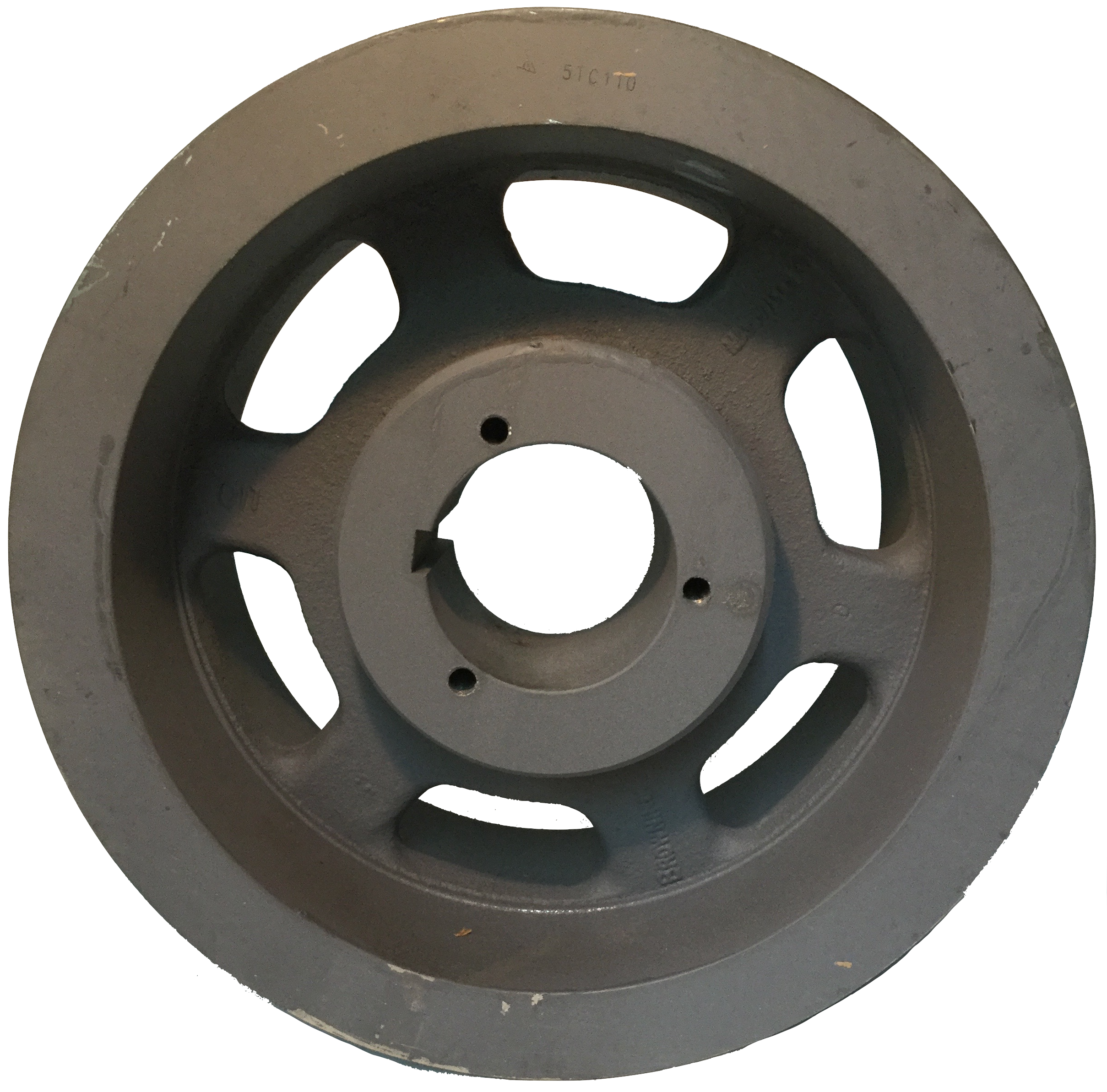

This 5-groove cast iron sheave fits C Series belts and features a split taper bushing. All our sheaves are manufactured to meet all common industry standards.
| Bore Type | Split Taper | Length Through Bore | 3.500” | Face Width | 5.250” |
| Bushing Bore Range | 1 - 2 5/8'' | Pulley Construction | Spoked | Application | Classical C 5-Belt Drive |
| Width | 5.250'' | Material | Cast Iron | Number Of Grooves | 5 |
| Outside Diameter | 11.400” | Bushing Series | Q2 | Pitch Diameter | 11.4 |
| Keyway Size | 1/2 x 1/4 (1-13/16 to 2-1/4 Bore) in, 1/4 x 1/8 (15/16 to 1-1/4 Bore) in, 1/8 x 1/4 (1/2 to 9/16 Bore) in, 3/16 x 3/32 (5/8 to 7/8 Bore) in, 3/4 x 3/8 (2-13/16 to 2-15/16 Bore) in, 3/8 x 3/16 (1-7/16 to 1-3/4 Bore) in, 5/16 x 5/32 (1-5/16 to 1-3/8 Bore) i |
